Thermalright TR‑SP1000 1000W Platinum – High‑Efficiency ATX 3.1 PSU
Thermalright TR‑SP1000 1000W Platinum – High‑Efficiency ATX 3.1 PSU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Shipped within 3 business days
Thermalright TR‑SP1000 1000W Platinum – High‑Efficiency ATX 3.1 PSU
| Manufacturer | Thermalright |
| Efficiency rating | 80 plus Platinum |
| Modular | FULL |
| Wattage | 1000W |
Payment & Security
Cash on delivery - Instapay
Thermalright TR‑SP1000 1000W Platinum – High‑Efficiency ATX 3.1 PSU

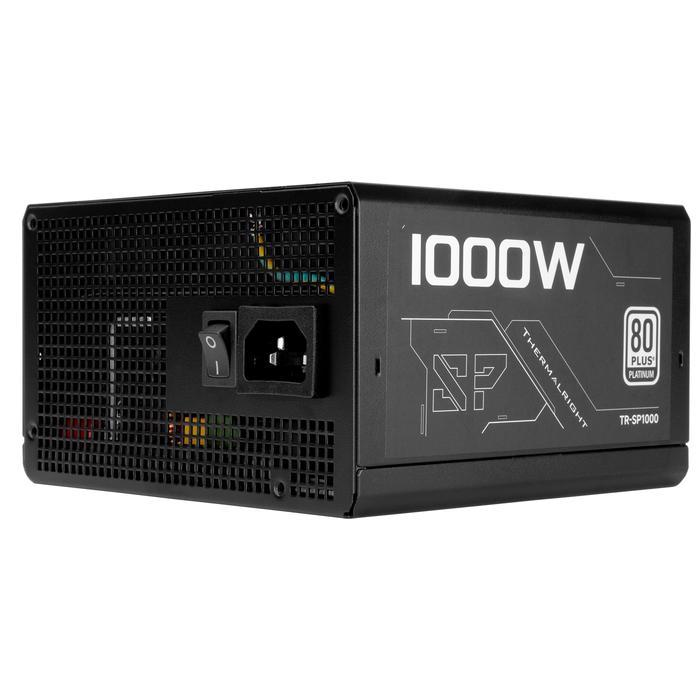

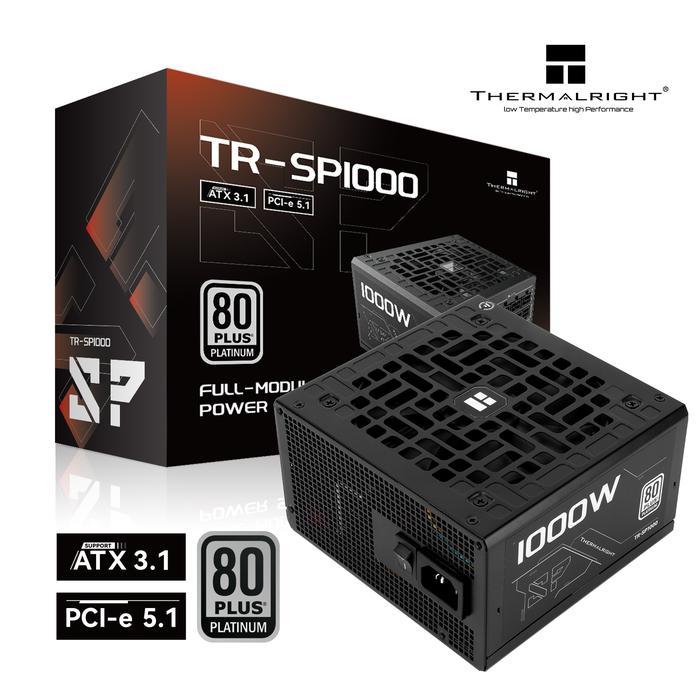

Meet the Thermalright TR‑SP1000, a premium full‑modular power supply designed for demanding PC builds. With 1000W continuous output, 80 PLUS Platinum efficiency, and native support for PCIe 5.1, it’s built to power next‑gen GPUs and high-end systems reliably and quietly.
Key Features
- 1000 W continuous power (up to 200% Power Excursion) – ensures stability even under sudden load spikes
- 80 PLUS Platinum (~92% efficiency) – reduces waste heat, lowers power cost, increases longevity
- Native PCIe 5.1 + ATX 3.1 compliance – ready for future high-end GPUs and platform standards
KEY SPECIFICATIONS
| Feature | Specification |
|---|---|
| Rated Power | 1000 W |
| Efficiency Certification | 80 PLUS Platinum (~92%) |
| Standard / Spec | ATX 3.1 |
| Modular Type | Full modular |
| Cooling | 120 mm fan, Smart Fan Start/Stop |
| Topology | LLC Resonance + DC‑DC |
| Main Capacitor | Japanese, 105 °C rated |
| Protection Features | OCP, OVP, OPP, OTP, SCP, UVP |
| Connector Set | 1× 20+4 ATX, 2× 4+4 EPS, 1× PCIe 5.1, 3× PCIe 6+2, 10× SATA, 4× Molex |
| Dimensions | 150 × 140 × 85 mm |
| Weight | ~2.77 kg |
| Warranty | 60 months |
* Specifications may vary by region and model variant.
Performance Excellence
With LLC Resonance + DC‑DC architecture and robust Japanese capacitors rated at 105 °C, the TR‑SP1000 delivers tight voltage regulation and minimal ripple under heavy loads. It also supports transient spikes via Power Excursion of up to 200%, ensuring your system stays stable even during sudden power demands.
User Experience & Comfort
The Smart Fan Start/Stop mechanism keeps the fan off during light or idle loads, enabling near-silent operation. Full modular cabling allows you to use only necessary cables, reducing clutter and enabling improved airflow within your case.
Design & Build Quality
Housed in a sleek black compact chassis measuring 150×140×85 mm, the TR‑SP1000 fits most standard ATX cases. Its internal build emphasizes reliability, using high-quality components and protective features to ensure longevity and peace of mind.

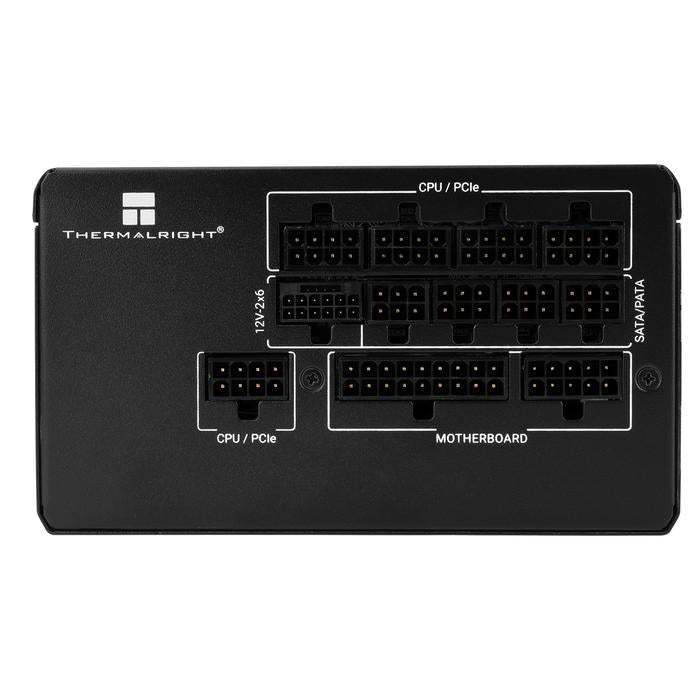

Connectivity & Compatibility
- 1 × 20+4 pin ATX for motherboard
- 2 × 4+4 pin EPS for CPU
- 1 × native PCIe 5.1 (12V‑2×6) for next-gen GPUs
- 3 × PCIe 6+2 connectors
- 10 × SATA, 4 × Molex
Perfect For
- High-end gaming systems with demanding GPUs
- Workstations and rendering setups requiring stable power
- Future-proof PC builds targeting next-generation GPU and platform standards
Why Choose This Product
The TR‑SP1000 combines superior efficiency, robust transient handling, and native support for modern GPU power standards, all backed by a 5‑year warranty. It’s a future-forward choice for builders who want reliable, long-lasting performance without compromise.
Frequently Asked Questions
Q: Will this PSU support modern high-power GPUs?
A: Yes — the included PCIe 5.1 connector ensures compatibility with next-generation GPUs using the 12V‑2×6 (16‑pin) standard.
Q: How noisy is the cooling fan under heavy loads?
A: The Smart Fan Start/Stop ensures the fan remains off under light loads. Under heavy usage, it activates intelligently and is engineered to minimize noise while maintaining optimal cooling.
