Thermal Grizzly Intel 13th/14th Gen CPU Contact Frame – Optimized Pressure for Lower Temps
Thermal Grizzly Intel 13th/14th Gen CPU Contact Frame – Optimized Pressure for Lower Temps is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Shipped within 3 business days
Return Policy
Thermal Grizzly Intel 13th/14th Gen CPU Contact Frame – Optimized P...
| Manufacturer | Thermal grizzly |
Payment & Security
Cash on delivery - Instapay

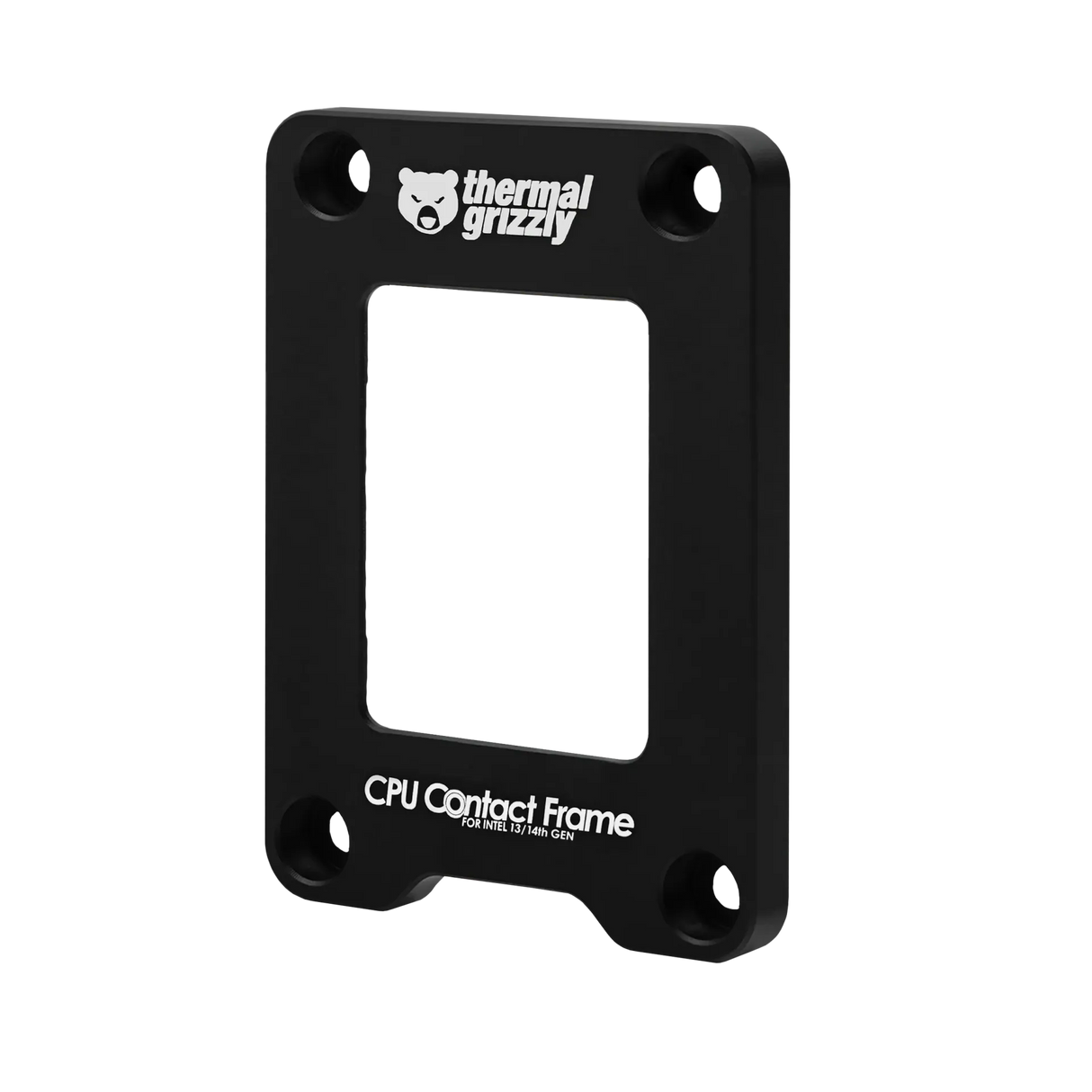

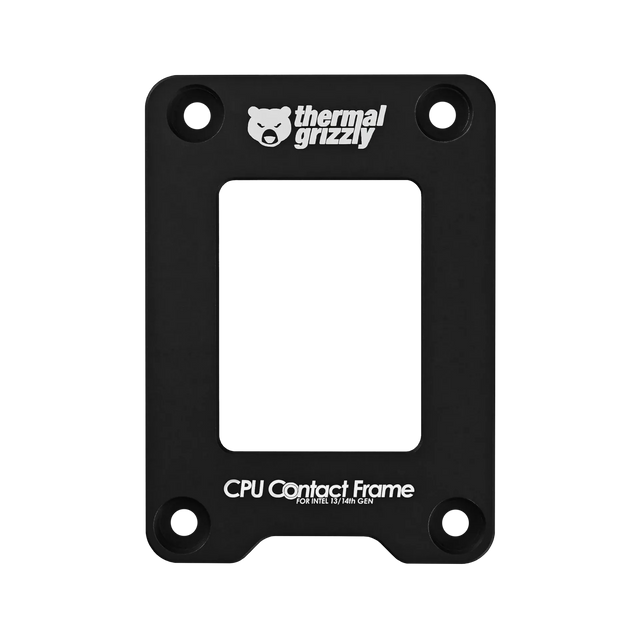

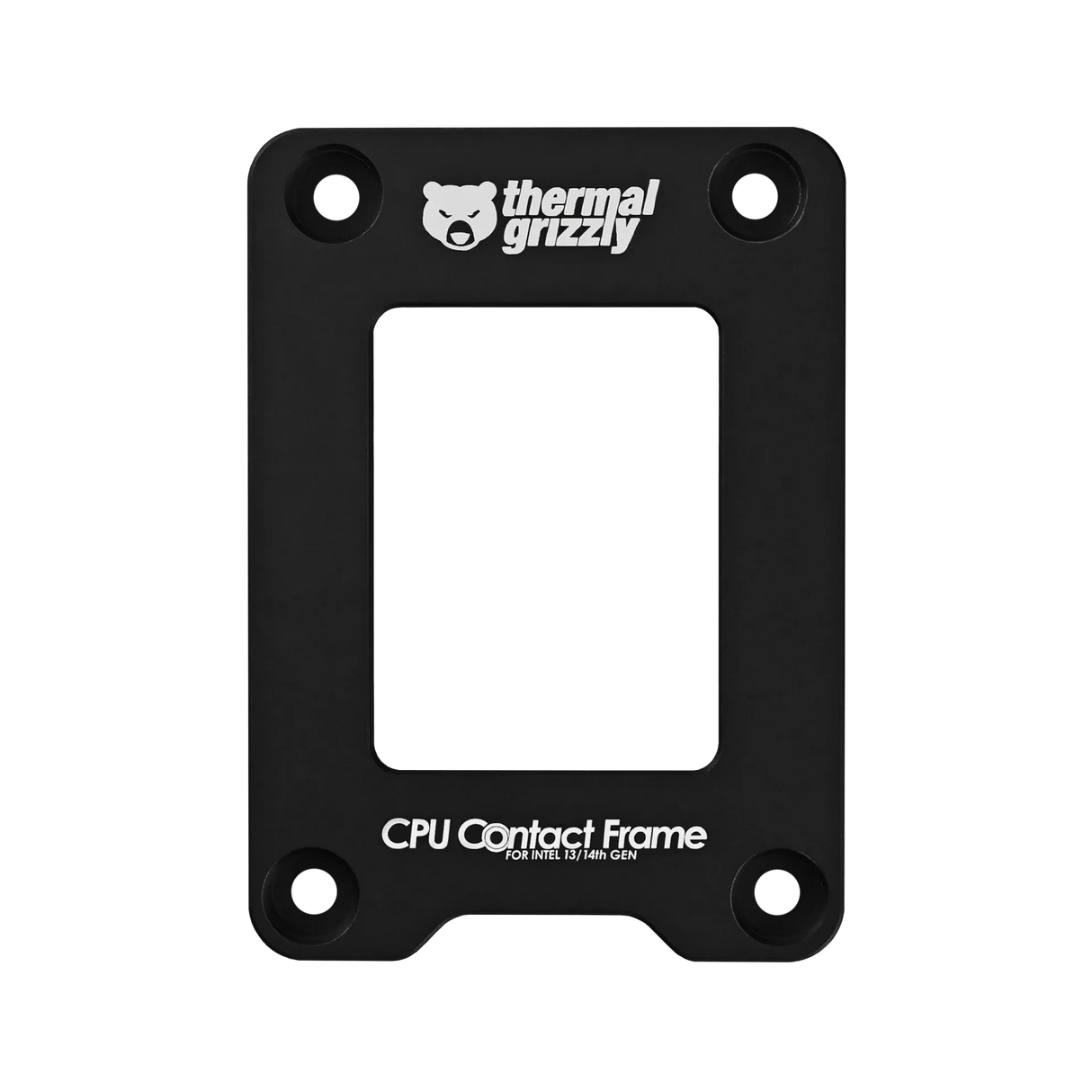

The Thermal Grizzly Intel 13th/14th Gen CPU Contact Frame (TG-CF-i13G), designed in collaboration with renowned overclocker Roman “der8auer” Hartung, is a precision mounting aid that replaces the standard Integrated Loading Mechanism (ILM) on Intel LGA1700 motherboards. Manufactured in Berlin from anodized aluminum, it redistributes contact pressure to prevent IHS warping and deliver better cooler contact for noticeably lower CPU temperatures.
key features
- Optimized inner contour - Even contact pressure that flattens the IHS and maximizes cooler contact area for reduced hotspot temperatures
- Simplified assembly - No specific torque required; revised design makes installation faster and more reliable
- High-quality anodized aluminum - Durable, thermally stable black frame that encloses the heatspreader
- Broad compatibility - Works with 12th, 13th and 14th Gen Intel CPUs on LGA1700 (IHS ground ≤0.2 mm)
key specifications
| Feature | Specification |
|---|---|
| Brand / Model | Thermal Grizzly / TG-CF-i13G |
| Socket | Intel LGA 1700 |
| Compatible CPUs | 12th, 13th & 14th Generation |
| Material | Anodized aluminum |
| Color | Black |
| Dimensions (L × W × H) | 71 × 51 × 6 mm |
| Net Weight | approx. 25 g |
| Scope of Delivery | 1× Contact Frame, 4× pan-head UNC 3/8" screws, 1× 5/64" hex wrench, 1× Torx T20 angle wrench |
* Specifications may vary by region and model variant.
performance excellence
By shifting pressure from the center of the elongated CPU to the edges, the frame prevents the concave curvature of the Integrated Heat Spreader that occurs with stock ILMs. This creates a larger, more uniform contact surface between the cooler base and the CPU, allowing waste heat to dissipate more effectively. Depending on the cooler and processor, users typically observe noticeable temperature reductions and improved thermal headroom for sustained loads or overclocking.
user experience & comfort
Installation is straightforward and requires only a few steps with the included tools—no specialized torque wrench needed thanks to the revised inner contour. The frame fully encloses the heatspreader while remaining low-profile, so it does not interfere with most coolers. Simply ensure no electronic components sit under the frame (especially important on Mini-ITX boards).
design & build quality
Precision-machined from anodized aluminum in Berlin, the black frame offers excellent durability and a clean aesthetic that matches high-end builds. The design is 100% Made in Germany and developed with input from professional overclocker der8auer, ensuring both mechanical reliability and real-world thermal benefits.
connectivity & compatibility
- Compatible with Intel 12th, 13th and 14th Gen processors on socket LGA 1700
- Supports CPUs whose IHS has been ground by no more than 0.2 mm
- Replaces the motherboard’s stock ILM (note: removing the ILM may void the motherboard manufacturer’s warranty)
- Caution on Mini-ITX boards: verify no components are located under the frame
perfect for
- Users seeking lower CPU temperatures and better cooler contact on LGA1700 platforms
- Overclockers and high-performance builders wanting improved thermal headroom
- Anyone replacing a stock ILM with a durable, easy-to-install aluminum contact frame
why choose this product
This is the updated Thermal Grizzly solution for Intel’s LGA1700 platform—simpler to install than earlier versions, built from premium anodized aluminum, and engineered by der8auer for measurable cooling gains. It delivers genuine thermal improvement without complex tools or guesswork.
frequently asked questions
Q: Which CPUs are compatible with the Thermal Grizzly 13th/14th Gen Contact Frame?
A: It supports Intel 12th, 13th and 14th Generation processors on socket LGA 1700. It also works with CPUs whose Integrated Heat Spreader has been ground down by no more than 0.2 mm. Always check for clearance on Mini-ITX boards.
Q: Does installing the contact frame void my motherboard warranty?
A: Removing the original Integrated Loading Mechanism (ILM) may invalidate the motherboard manufacturer’s warranty. Proceed at your own risk and consult your motherboard documentation if needed.
Q: Is special torque required during installation?
A: No. The revised inner contour of this model eliminates the need for a specific torque value, making assembly significantly simpler than the previous generation.
