GIGABYTE GC-MAPLE RIDGE Intel Thunderbolt 4 JHL 8540 Controller 2x USB Type-C 1x DisplayPort 1.4 2x Mini DisplayPort Max Bandwidth 40 Gb/s PCIe Card
Upgrade to Blazing-Fast Thunderbolt 4 Performance

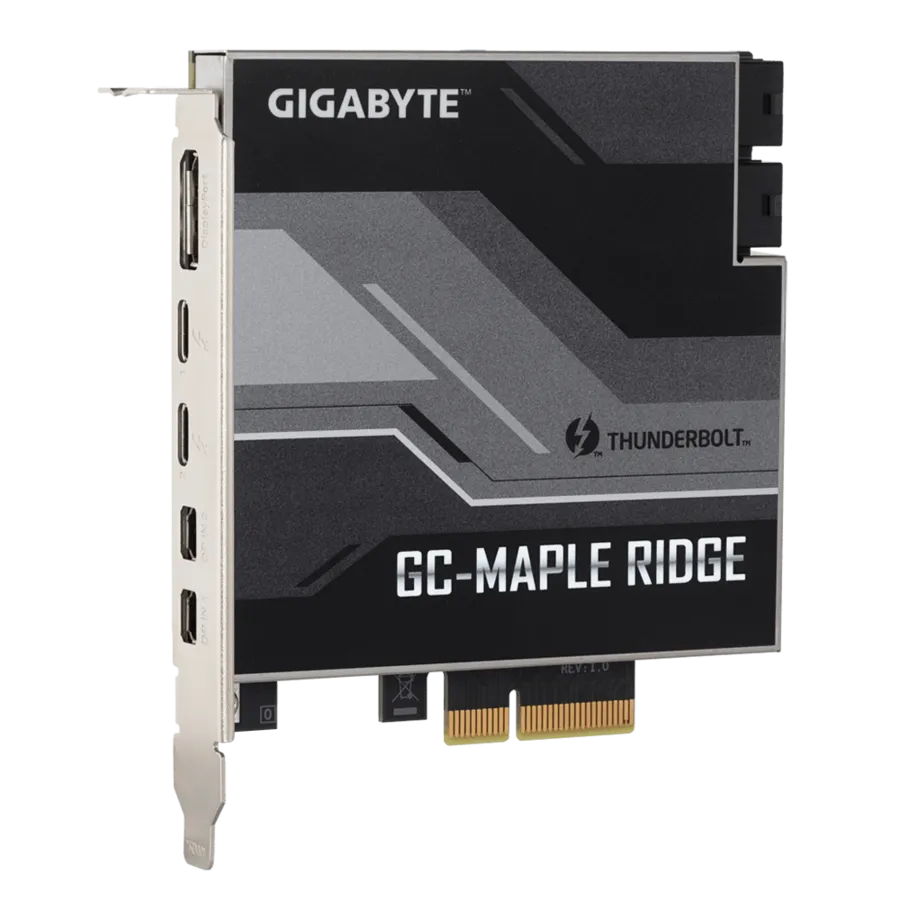

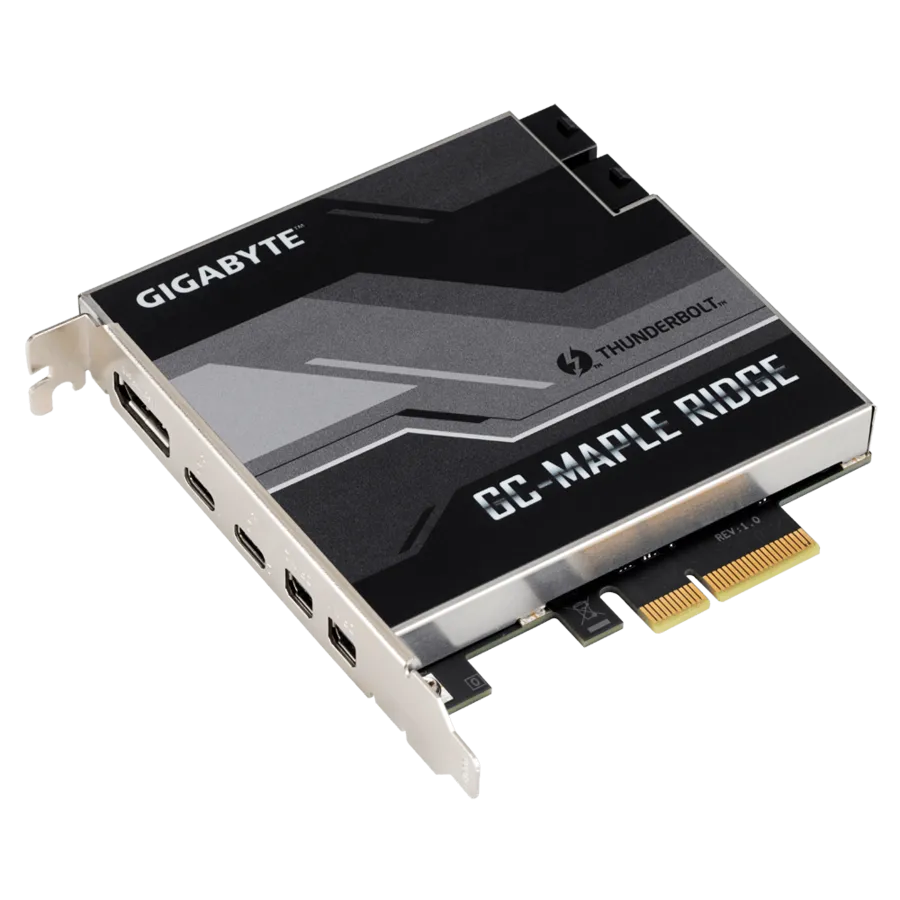

Meet the GIGABYTE GC‑MAPLE RIDGE Thunderbolt 4 PCIe card—your gateway to ultra‑fast 40 Gb/s data transfers, dual‑monitor 4K/8K support, and capable 97 W power delivery. Designed for gamers craving high‑speed peripheral connections, PC builders seeking future‑ready expandability, content creators handling massive media files, and productivity power users needing seamless multitasking—this card is the perfect upgrade without replacing your motherboard.
Key Specifications
| Feature | Specification |
|---|---|
| Controller | Intel JHL8540 Thunderbolt 4 |
| Interface | PCIe 3.0 x4 |
| Ports | 2× Thunderbolt 4 (USB‑C), 1× DisplayPort 1.4 input, 2× Mini‑DisplayPort input |
| Bandwidth | Up to 40 Gb/s per port |
| Display Support | Dual 4K @ 60 Hz or single 8K (via DisplayPort 1.4) |
| Daisy‑chain | Up to 10 devices (5 per port) |
| Power Delivery | PD 3.0—Port 1 up to 97 W; Port 2 up to 27 W |
| Compatibility | GIGABYTE motherboards with Thunderbolt header and PCIe x4 slot (Z590/B560/Z690/B660, and select Z790 series) |
Why Choose This Product?
- **Unbeatable Speed** — Thunderbolt 4 delivers up to 40 Gb/s—twice as fast as TB2 and eight times faster than USB 3.2—accelerating transfers and workflow.
- **Multi‑Display Powerhouse** — Drive dual 4K screens or a single 8K display via DisplayPort 1.4 for stunning visuals and enhanced productivity.
- **Expandable Ecosystem** — Daisy‑chain up to 10 Thunderbolt devices without extra hubs—ideal for high-end storage, docks, and displays.
- **High‑Wattage Charging** — With PD 3.0 support (up to 97 W), power your laptop or USB‑C devices direct from the card via Port 1.
- **Smart Upgrade Path** — Add Thunderbolt 4 to supported motherboards via existing headers, no need for a full motherboard replacement.
- **Versatile Use Case** — Equally suited for gamers, creators, and productivity users looking to accelerate data, displays, and device connectivity.
Ready to transform your PC into a high-speed hub? Experience faster transfers, dual‑monitor support, and advanced device charging—all through a single, sleek Thunderbolt 4 PCIe card.
