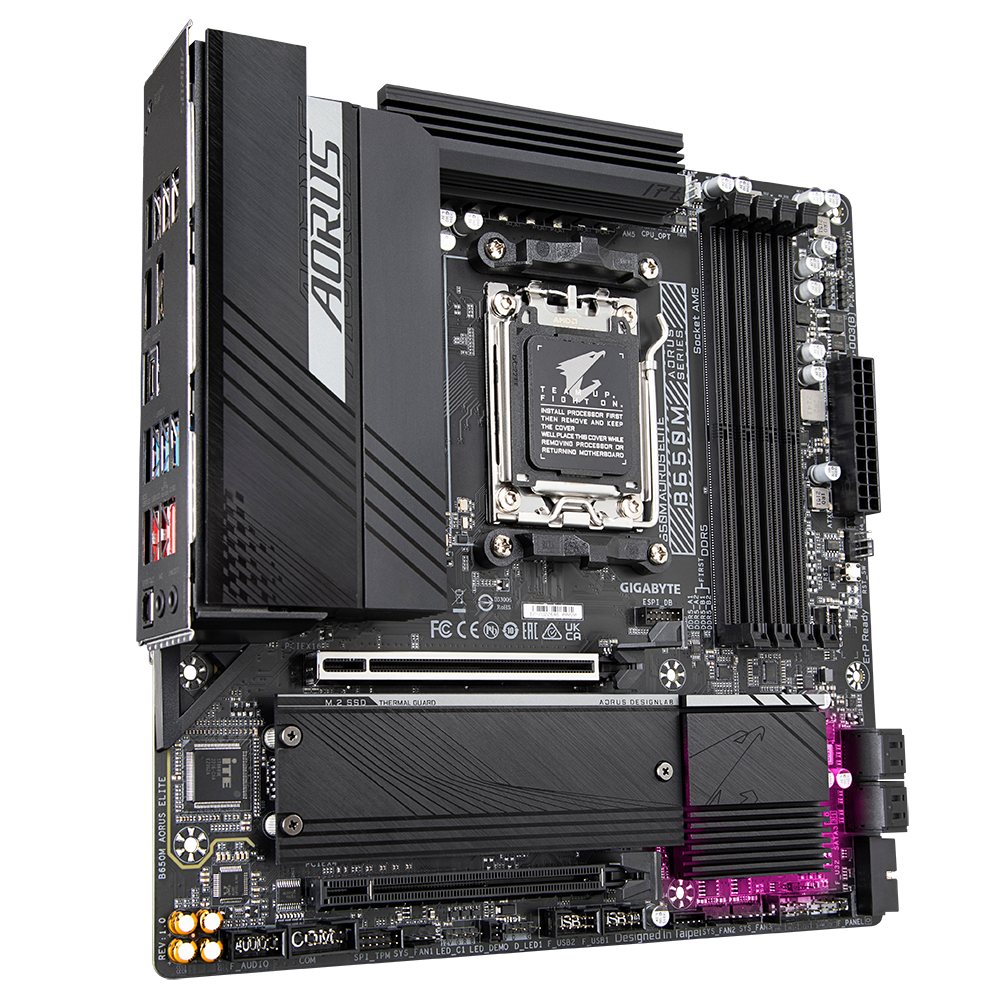

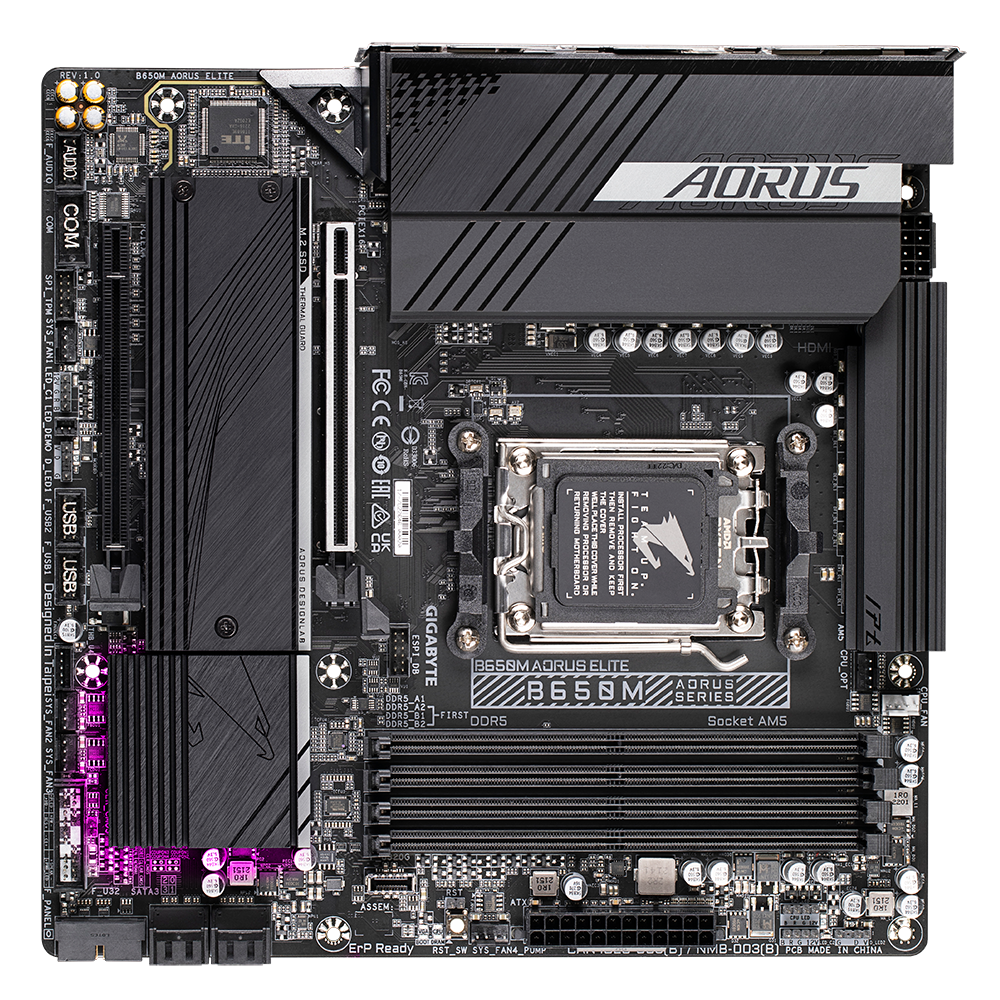

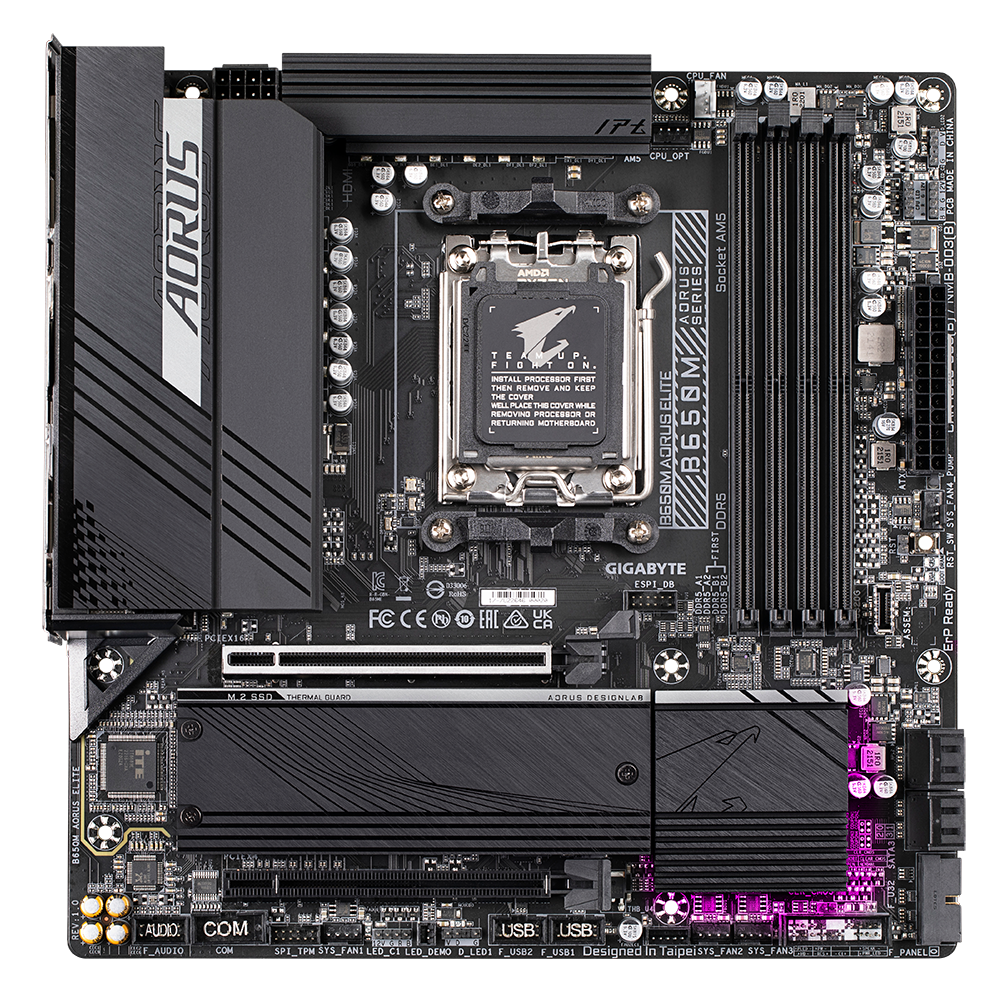

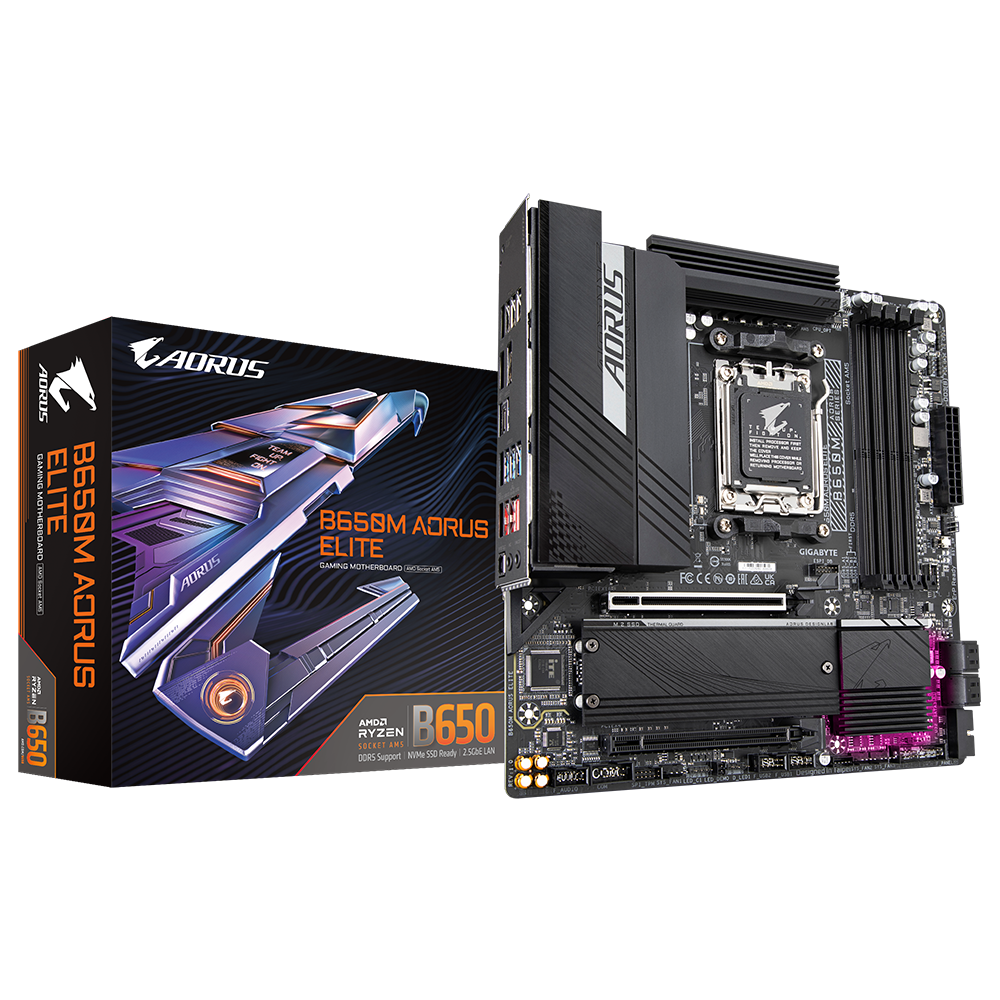

GIGABYTE B650M AORUS Elite AM5 DDR5 Gaming Motherboard – Ultra Durable
GIGABYTE B650M AORUS Elite AM5 DDR5 Gaming Motherboard – Ultra Durable is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Shipped within 3 business days
Return Policy
GIGABYTE B650M AORUS Elite AM5 DDR5 Gaming Motherboard – Ultra Durable
| Manufacturer | Gigabyte |
| Chipset | AMD B650 |
| Cpu socket | AM5 |
| Form factor | mATX |
| Memory slots | 4 |
| Memory type | DDR5 |
Payment & Security
Cash on delivery - Instapay
The GIGABYTE B650M AORUS Elite is a premium Micro ATX gaming motherboard built on the AMD B650 chipset, delivering robust power and connectivity for next-gen builds. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors via the AM5 socket, it combines advanced thermal solutions and DIY-friendly features to elevate your PC experience. Whether you're overclocking for extreme gaming or assembling a high-performance workstation, this board offers unmatched stability and expandability.
key features
- Twin 12+2+1 Digital VRM - Delivers stable, efficient power for maximum CPU overclocking and multi-core performance without thermal throttling.
- PCIe 5.0 M.2 Slot with Thermal Guard - Enables ultra-fast NVMe SSD speeds up to double PCIe 4.0 bandwidth, keeping storage cool during intensive loads.
- EZ-Latch & Q-Flash Plus - Simplifies GPU and M.2 installation while allowing BIOS updates without CPU or RAM, saving time and reducing frustration.
key specifications
| Feature | Specification |
|---|---|
| CPU Socket | AMD Socket AM5 (Supports Ryzen 7000/8000/9000 Series) |
| Chipset | AMD B650 |
| Form Factor | Micro ATX (mATX) |
| Memory | 4x DDR5 DIMM Slots, Dual Channel, AMD EXPO™/Intel® XMP Support (Up to 8000+ MT/s OC) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, GIGABYTE Add-in Card Support |
| Storage | 1x PCIe 5.0 x4 M.2, 1x PCIe 4.0 x4 M.2 (w/ Thermal Guard), 4x SATA 6Gb/s |
| Networking | 2.5GbE LAN (RJ-45) |
| Audio | Realtek 8-Channel HD Audio with High-End Capacitors |

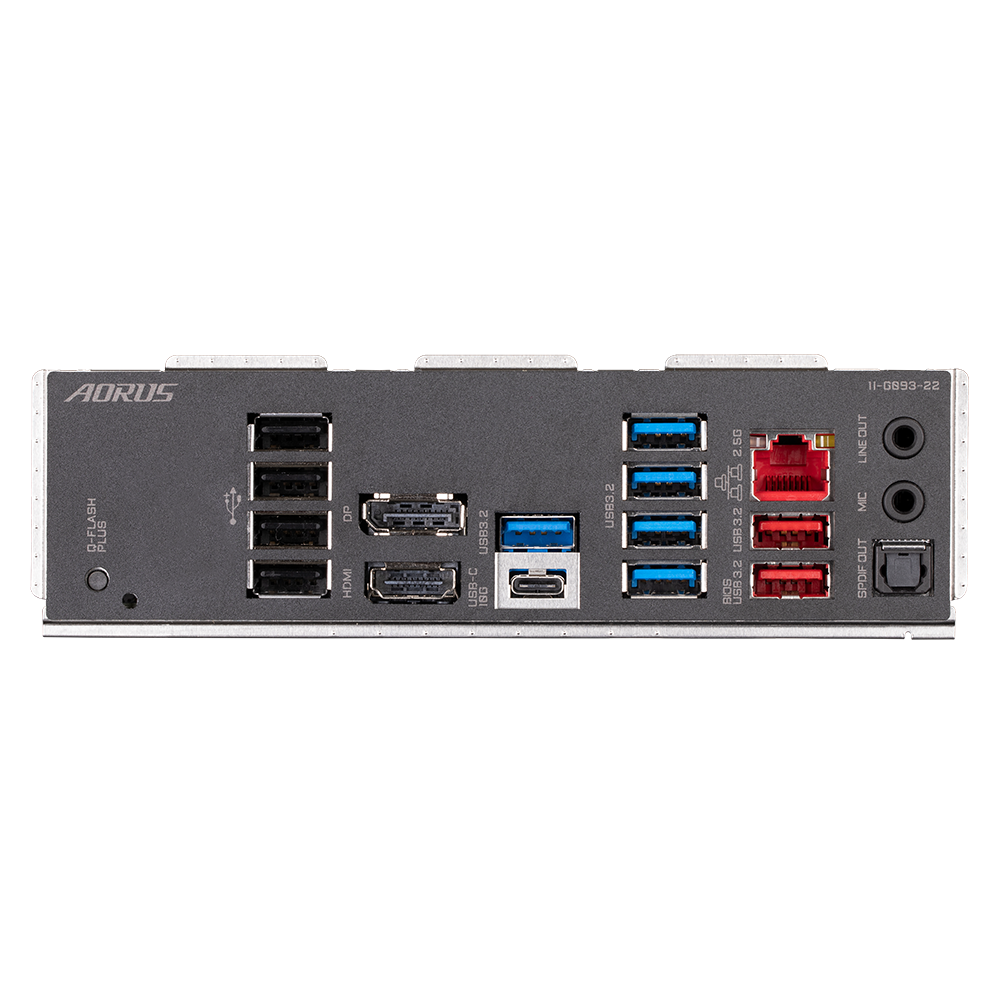

| Rear I/O Ports | 1x DisplayPort, 1x HDMI, 1x USB 3.2 Gen 2 Type-C (10Gb/s), 2x USB 3.eff 2 Gen 2 Type-A, 5x USB 3.2 Gen 1 Type-A, 4x USB 2.0 |
| Front I/O | 1x USB 3.2 Gen 2x2 Type-C (20Gb/s) |
| Power Design | Twin 12+2+1 Phases Digital VRM (60A SPS) |
| Cooling | Smart Fan 6 (6x PWM/DC Headers), M.2 Thermal Guard, Full MOSFET Heatsinks |
* Specifications may vary by region and model variant.
performance excellence
Powered by a Twin 12+2+1 digital VRM solution with 60A Smart Power Stages and 2x copper PCB, the B650M AORUS Elite ensures unflinching stability during overclocking sessions, supporting Ryzen processors up to their maximum Turbo Boost. Its PCIe 5.0-ready design future-proofs your build for next-gen GPUs and storage, delivering bandwidth that handles 4K gaming and content creation without bottlenecks.
user experience & comfort
EZ-Latch mechanisms on PCIe and M.2 slots make installation tool-free and intuitive, ideal for first-time builders or quick upgrades. Q-Flash Plus lets you update the BIOS effortlessly without components installed, while the intuitive UEFI interface with Easy Mode provides real-time hardware monitoring for hassle-free tuning.
design & build quality
Crafted with GIGABYTE's Ultra Durable™ technology, including 8-layer PCB and integrated I/O shield, this motherboard withstands rigorous use with enhanced heat dissipation via 6mm heatpipes and high-conductivity pads. Its sleek black aesthetic with RGB Fusion support adds a premium touch to any chassis, blending durability with customizable style.
connectivity & compatibility
- 2.5GbE LAN for lag-free online gaming and fast file transfers.
- Comprehensive USB array: Rear USB-C 10Gb/s for quick peripherals, front USB-C 20Gb/s for modern cases, plus legacy USB 2.0 support.
- Display outputs (DP/HDMI) for integrated Ryzen graphics, ensuring versatile setup options.
perfect for
- High-end gaming rigs needing overclocked Ryzen power and PCIe 5.0 storage speeds.
- Content creators building compact workstations with DDR5 memory and multi-monitor support.
- Enthusiast PC builders valuing easy installation and future-proof AM5 compatibility.
why choose this product
In a sea of mid-range boards, the GIGABYTE B650M AORUS Elite stands out with its unparalleled VRM performance and DIY innovations, offering better value than competitors without sacrificing features. Backed by a robust warranty and proven reliability in real-world tests, it's the smart pick for gamers and pros who demand longevity and peak efficiency in every build.
frequently asked questions
Q: Which AMD processors are compatible with this motherboard?
A: It fully supports AMD Ryzen 7000, 8000, and 9000 Series CPUs on the AM5 socket; ensure your BIOS is updated via Q-Flash Plus for the latest generations.
Q: Does it support DDR5 overclocking, and what's the maximum speed?
A: Yes, with AMD EXPO™ and Intel® XMP support on four DDR5 slots, it handles overclocks up to 8000+ MT/s for enhanced multitasking and gaming performance.
