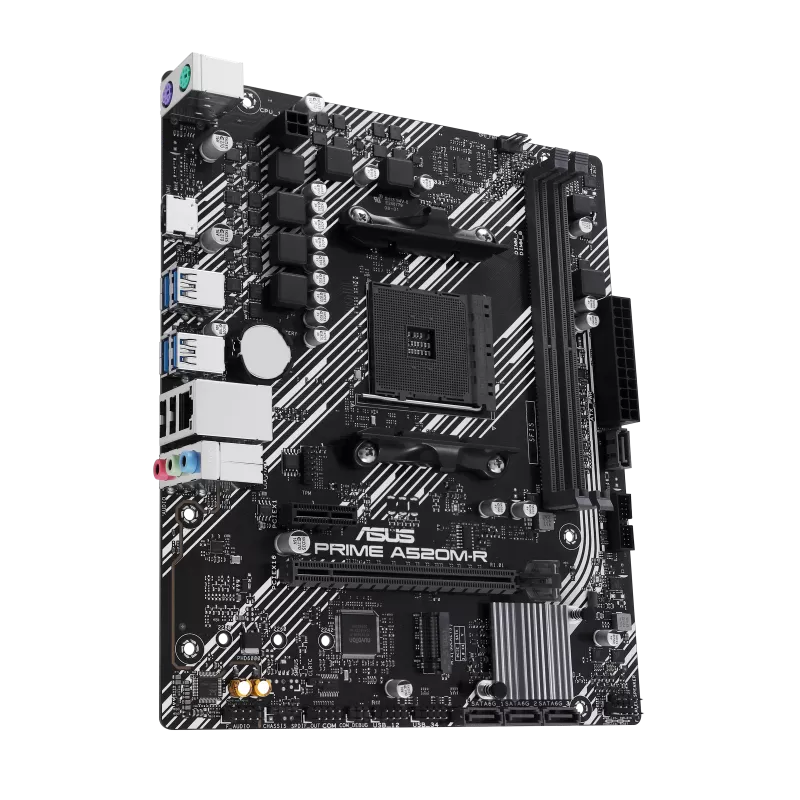

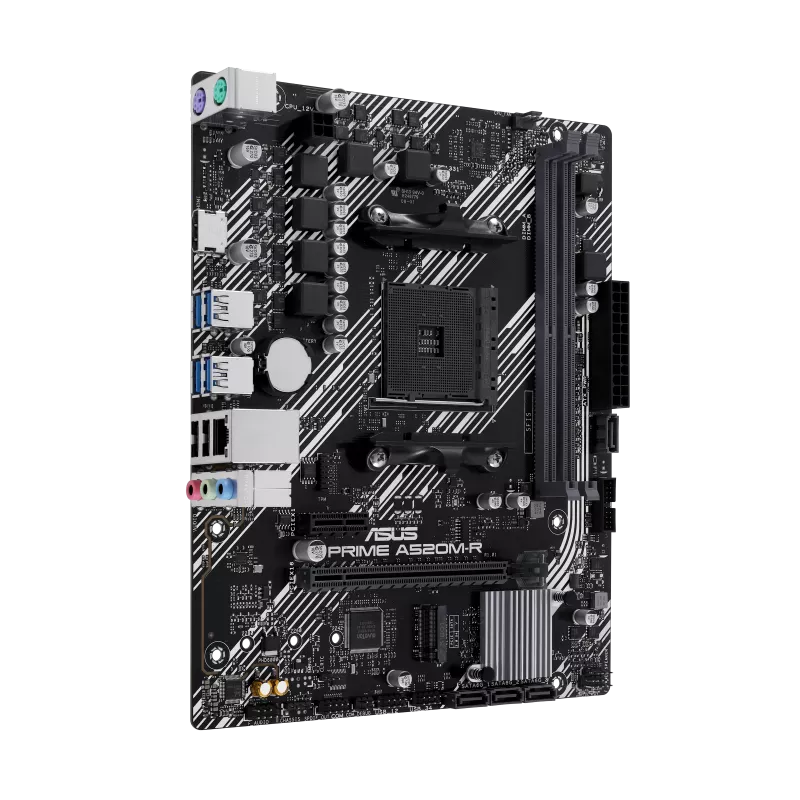

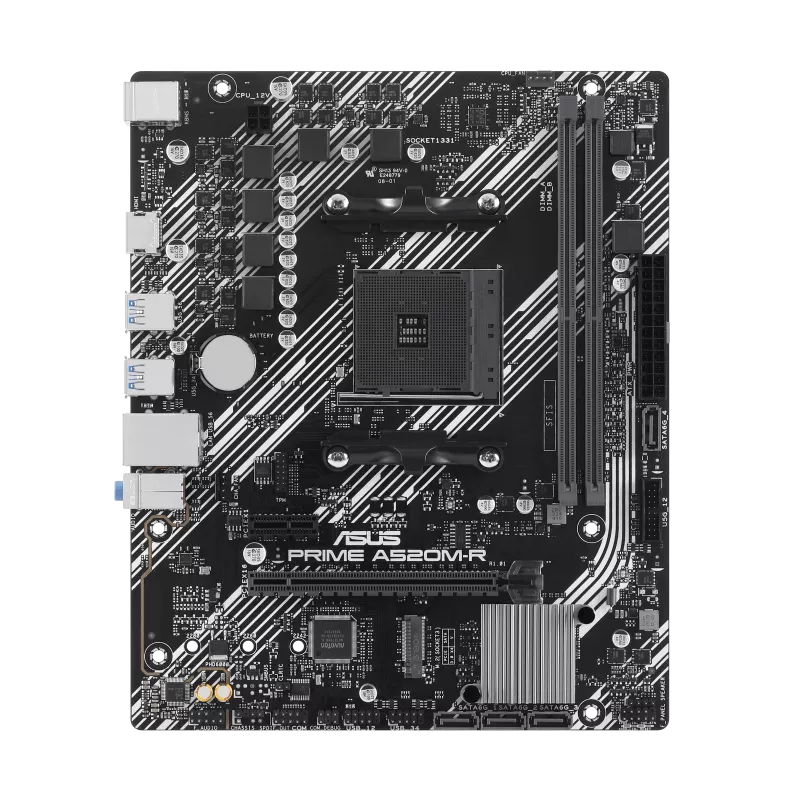

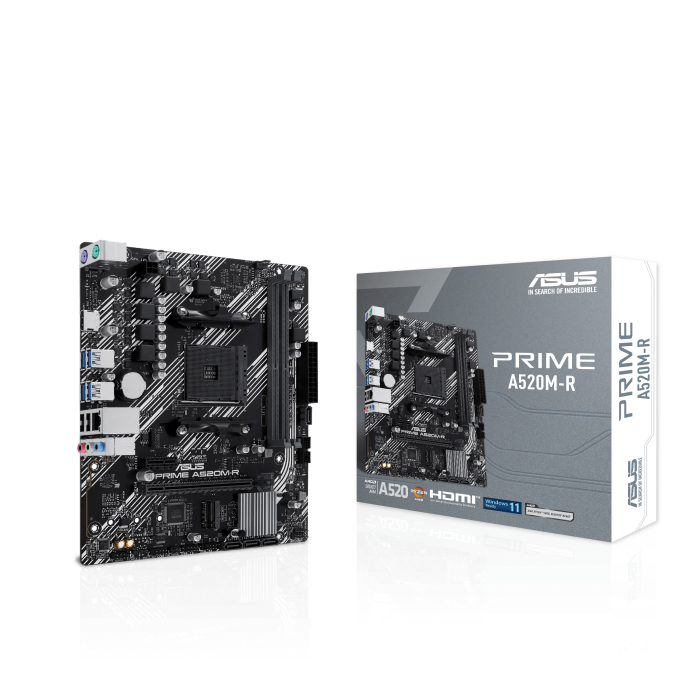

ASUS PRIME A520M-R: Reliable AMD Motherboard with M.2 Support and Ryzen Compatibility
ASUS PRIME A520M-R: Reliable AMD Motherboard with M.2 Support and Ryzen Compatibility is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Shipped within 3 business days
Return Policy
ASUS PRIME A520M-R: Reliable AMD Motherboard with M.2 Support and R...
| Manufacturer | Asus |
| Chipset | AMD A520 |
| Cpu socket | AM4 |
| Form factor | mATX |
| Memory slots | 2 |
| Memory type | DDR4 |
Payment & Security
Cash on delivery - Instapay
The ASUS PRIME A520M-R is a budget-friendly yet highly reliable micro-ATX motherboard built for AMD Ryzen processors. It delivers essential modern features, proven durability, and ASUS-exclusive technologies at an unbeatable price point.
key features
- AMD AM4 Socket – Ryzen 5000/4000/3000 Ready – Supports the latest Ryzen CPUs out of the box (BIOS update may be required for 5000 series)
- Ultrafast M.2 Slot (PCIe 3.0 x4) – Up to 32 Gbps for NVMe SSDs and lightning-fast boot times
- 5X Protection III – Industry-leading circuit protection, stainless-steel back I/O, and enhanced DRAM overcurrent protection
key specifications
| Feature | Specification |
|---|---|
| Chipset | AMD A520 |
| Form Factor | Micro-ATX |
| CPU Socket | AM4 |
| Supported CPUs | Ryzen 5000 / 5000 G / 4000 G / 3000 / 3000 G Series |
| Memory | 2 × DDR4 DIMM, max 64 GB, up to 4600 MHz (OC) |
| Expansion Slots | 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1 |
| Storage | 1 × M.2 (PCIe 3.0 x4 & SATA), 4 × SATA 6 Gb/s |
| LAN | Realtek 1 Gb Ethernet with LANGuard |

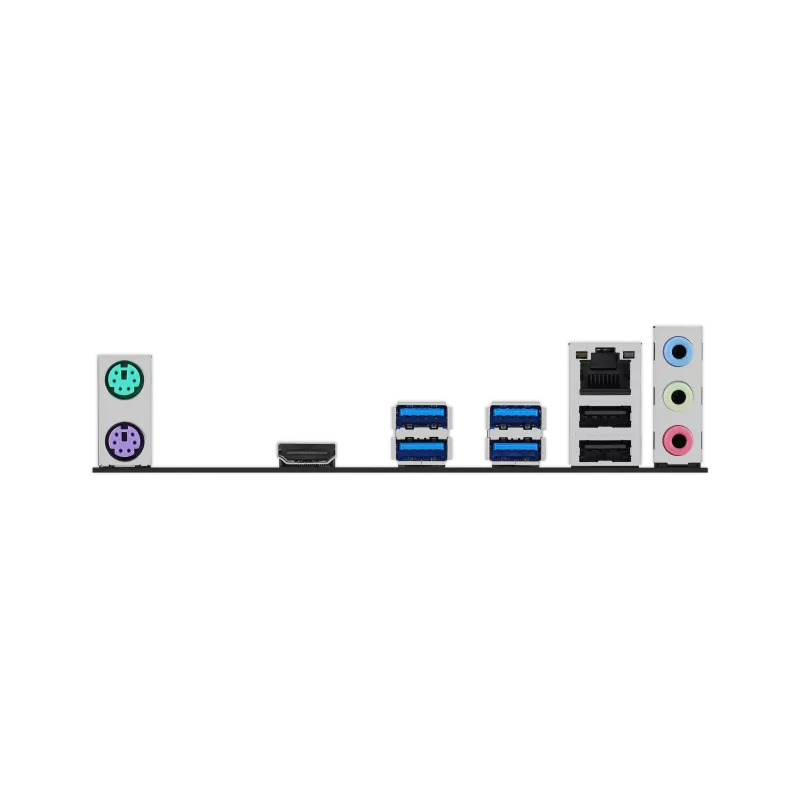

| USB Ports (Rear) | 4 × USB 3.2 Gen 1, 2 × USB 2.0 |
| Audio | Realtek 7.1 Surround Sound |
| Video Output | HDMI 2.1 (for Ryzen with graphics) |
* Specifications may vary by region and BIOS version.
performance excellence
Even with the affordable A520 chipset, the PRIME A520M-R provides rock-solid power delivery thanks to DIGI+ VRM and comprehensive cooling controls via Fan Xpert. It easily handles Ryzen 5 and Ryzen 7 CPUs for daily multitasking, content creation, and 1080p gaming when paired with a discrete GPU.
user experience & comfort
ASUS UEFI BIOS is intuitive with EZ Mode for beginners and Advanced Mode for enthusiasts. Q-LED Core diagnostic lights and safe-slot core design make building and troubleshooting straightforward and stress-free.
design & build quality
Built to last with 5X Protection III (overvoltage protection, DRAM overcurrent protection, stainless-steel back I/O, LANGuard, and SafeSlot Core). The compact micro-ATX layout fits almost any case while maintaining excellent airflow and cable-management options.
connectivity & compatibility
- 1 × M.2 slot supporting PCIe 3.0 x4 NVMe SSDs (up to 32 Gbps)
- HDMI 2.1 output – perfect for Ryzen 5000G / 4000G / 3000G APUs
- Realtek 1 Gb LAN with surge protection
- Full compatibility with Windows 11 and Windows 10 64-bit
perfect for
- Budget gaming PCs with Ryzen 5 5600X / 5600G or similar
- Home/office systems that need reliability and future upgrade path
- Compact builds (HTPC, small form-factor cases)
- First-time builders looking for trusted ASUS quality at entry-level price
why choose this product
You get legendary ASUS durability, modern connectivity (including fast M.2), proven Ryzen compatibility, and all the essential features most users need – without paying for unnecessary extras found on B550/X570 boards. It’s the smart choice for cost-effective, long-lasting AMD builds in 2025.
frequently asked questions
Q: Does it support Ryzen 5000 series out of the box?
A: Most recent batches ship with BIOS version that supports Ryzen 5000 series natively. If needed, ASUS USB BIOS FlashBack is not available on this model, but updating via EZ Flash in BIOS is simple.
Q: Can I use an NVMe SSD?
A: Yes – the M.2 slot supports both PCIe 3.0 x4 NVMe (up to 32 Gbps) and SATA SSDs.
Q: Is Wi-Fi included?
A: No built-in Wi-Fi. You can add a Wi-Fi card via the PCIe x1 slot or use USB Wi-Fi adapters.
