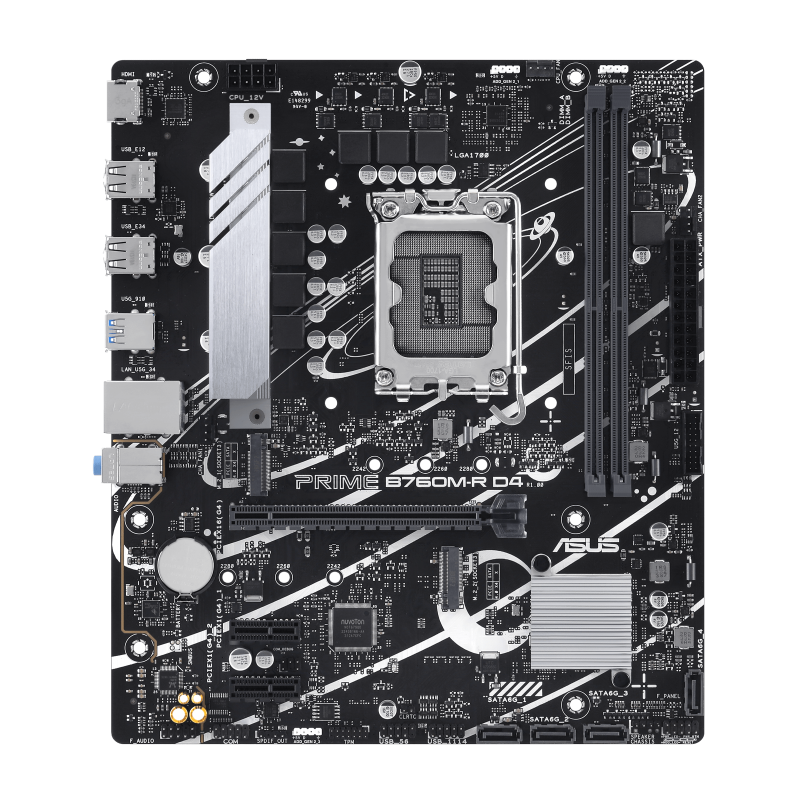

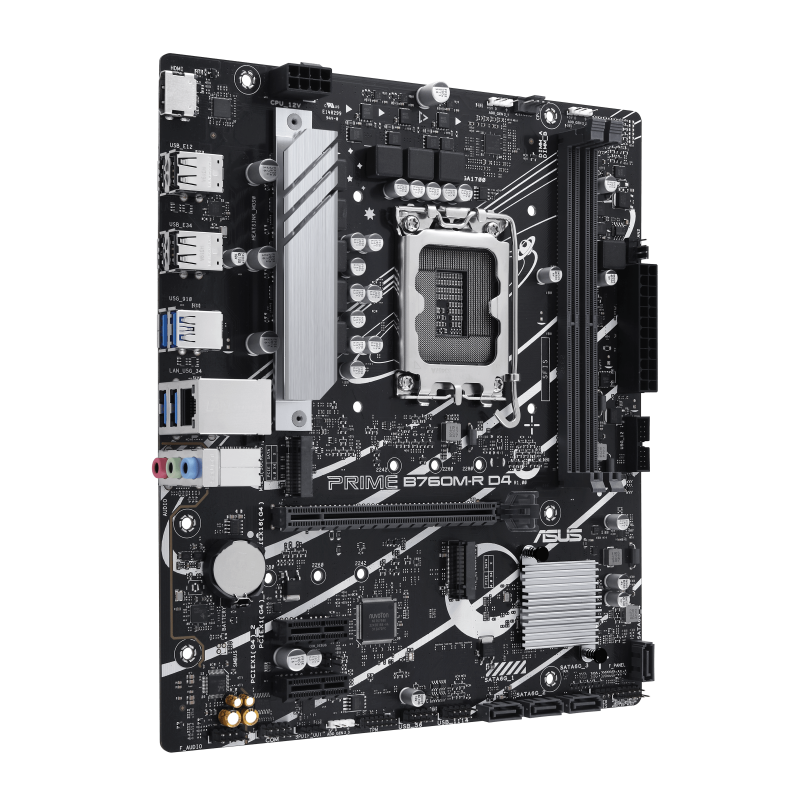

ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet HDMI SATA 6 Gbps front USB 5Gbps ports Aura Sync
ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet HDMI SATA 6 Gbps front USB 5Gbps ports Aura Sync تم طلبه مسبقًا وسيتم شحنه بمجرد عودته إلى المخزون.
معلومات الرعاية
معلومات الرعاية
عرض معلومات عامة عن المنتج أو معلومات محددة عن المنتج باستخدام الحقول الوصفية.
التسليم والشحن
التسليم والشحن
يتم الشحن خلال 3 أيام عمل
ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro-ATX motherboard wit...
| Manufacturer | Asus |
| Chipset | Intel B760 |
| Cpu socket | LGA 1700 |
| Form factor | mATX |
| Memory slots | 2 |
| Memory type | DDR4 |
الدفع والأمان
الدفع عند الاستلام - Instapay
العنوان الفرعي
ASUS PRIME B760M‑R D4 – Compact Powerhouse for Gamers, Creators & Everyday Pros
Discover the ASUS PRIME B760M‑R D4, a micro‑ATX marvel designed for those who want strong performance in a smaller build. Built for 12th, 13th, and 14th Gen Intel® processors, this board delivers ultrafast storage, high speed networking, sleek visuals and modern connectivity. Whether you're gaming, editing video, streaming, or building a versatile work‑horse PC, the B760M‑R D4 brings balanced power and features to match.
Key Specifications
| Feature | Specification |
| CPU Socket & Chipset | Intel LGA 1700 socket; Intel B760 chipset – supports 12th, 13th & 14th Gen Intel Core, Pentium Gold & Celeron CPUs |
| Form Factor | micro‑ATX (≈ 24.4 × 21.1 cm) |
| Memory | 2 × DDR4 DIMM slots, up to 64 GB; support for high‑speed and overclocked memory (up to ~5333 MHz OC depending on CPU & kit) |
| Storage | 2 × M.2 Key‑M slots (2280/2260/2242), both PCIe 4.0 ×4; 4 × SATA 6 Gb/s ports; RAID support |
| Expansion Slots | 1 × PCIe 4.0 ×16; 2 × PCIe 4.0 ×1 |

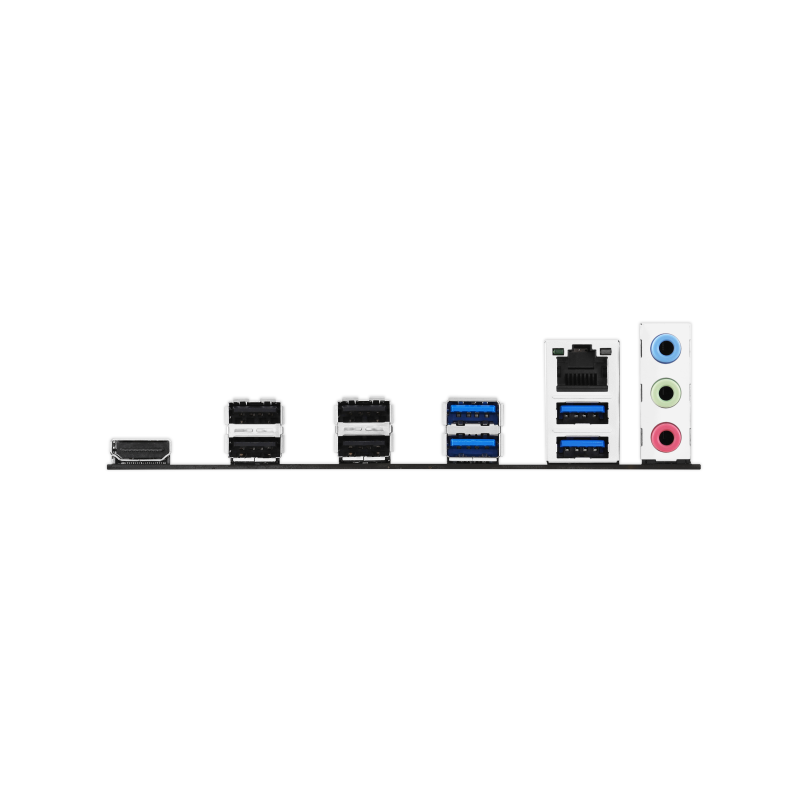

| Rear I/O / USB | 4 × USB 5 Gbps (Type‑A), 4 × USB 2.0; 1 × HDMI port; Realtek 2.5 Gb Ethernet; 3 × audio jacks |
| Front / Internal I/O | USB 5 Gbps header for front ports; USB 2.0 headers; multiple fan headers; addressable RGB Gen2 headers (Aura Sync compatible) |
| Cooling & Thermal Design | VRM heatsink, PCH heatsink; hybrid fan headers; Fan Xpert 2+ support for intelligent fan control |
| Audio | Realtek 7.1‑channel High Definition Audio CODEC; premium capacitors; PCB audio shielding and phase‑separated layers for clean signal |
| Networking & Features | Realtek 2.5 Gb Ethernet; ASUS 5X Protection III (SafeSlot Core, over‑voltage protection, LANGuard, stainless‑steel I/O backplate etc.); AI Noise Cancelation for mic & audio |
Why Choose this Product?
- Future‑ready CPU compatibility: Built to support 12th, 13th, and 14th Gen Intel processors so you can upgrade without replacing the board.
- High‑speed storage solution: Two PCIe 4.0 M.2 slots deliver blazing fast boot and load times for games, applications and content storage.
- Balanced size with full features: Micro‑ATX form factor means you can build a compact rig without sacrificing essentials.
- Modern connectivity: Front USB 5 Gbps support, multiple rear ports, HDMI output and fast Realtek 2.5 Gb networking keep you connected and ready.
- Efficient cooling & performance tuning: Heatsinks, hybrid fan headers, intelligent control via Fan Xpert 2+ raise stability under load.
- Cleaner audio & visual experience: Shielded audio paths, high‑quality components, addressable RGB and Aura Sync for aesthetic and immersive environments.
- Perfect for creators, office work, and gaming: Whether editing, rendering, streaming, or multitasking, this board gives versatility and performance in one solid package.
Upgrade Your PC Today
If you’re ready to build or upgrade a system that delivers fast storage, high‑speed CPU support, rich connectivity, and great performance in a compact size, the ASUS PRIME B760M‑R D4 is your ideal foundation. Add to cart now and step up your build to a whole new level.
