ASUS Prime B760-PLUS LGA 1700 ATX motherboard with PCIe 5.0 three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C front USB 3.2 Gen 1 Type-C Thunderbolt (USB4) support Aura Sync
ASUS Prime B760-PLUS LGA 1700 ATX motherboard with PCIe 5.0 three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C front USB 3.2 Gen 1 Type-C Thunderbolt (USB4) support Aura Sync تم طلبه مسبقًا وسيتم شحنه بمجرد عودته إلى المخزون.
معلومات الرعاية
معلومات الرعاية
عرض معلومات عامة عن المنتج أو معلومات محددة عن المنتج باستخدام الحقول الوصفية.
التسليم والشحن
التسليم والشحن
يتم الشحن خلال 3 أيام عمل
ASUS Prime B760-PLUS LGA 1700 ATX motherboard with PCIe 5.0 three P...
| Manufacturer | Asus |
| Chipset | Intel B760 |
| Cpu socket | LGA 1700 |
| Form factor | ATX |
| Memory slots | 4 |
| Memory type | DDR5 |
الدفع والأمان
الدفع عند الاستلام - Instapay
العنوان الفرعي
ASUS Prime B760‑PLUS Motherboard – Power, Speed & Next‑Gen Connectivity
Elevate your PC build with the ASUS Prime B760‑PLUS, an ATX motherboard engineered for gamers, content creators, office power users, and PC builders who demand modern performance and future‑ready features. With support for Intel’s 12th, 13th & 14th Gen CPUs, blazing fast DDR5 memory, multiple high‑speed storage options, PCIe 5.0, USB4/Thunderbolt header support, and ultra‑fast realtek 2.5Gb networking, this motherboard delivers everything needed for high frame rates, fast renders, seamless multitasking, and long‑term upgrade potential.
Key Specifications
| Feature | Specification |
| CPU Socket & Chipset | Intel LGA 1700 socket; Intel B760 chipset – supports Intel 12th, 13th & 14th Gen Core, Pentium Gold & Celeron CPUs |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Memory | 4 × DIMM, up to 192 GB DDR5; speeds up to 7200 MHz+ (OC) / 4800 MHz standard; Dual‑channel, OptiMem II, XMP support |
| Graphics Outputs | DisplayPort 1.4, HDMI 2.1, VGA; capable of up to 4K @ 60Hz from supported CPU iGPU |
| PCIe & Expansion Slots | 1 × PCIe 5.0 ×16 slot; 1 × PCIe 4.0 ×16 slot (runs at x4); 2 × PCIe 3.0 ×1 slots |
| Storage / M.2 | 3 × M.2 Key‑M slots: two with PCIe 4.0 ×4, one with PCIe 4.0 ×2; plus 4 × SATA 6 Gb/s ports; RAID 0/1/5/10 support |

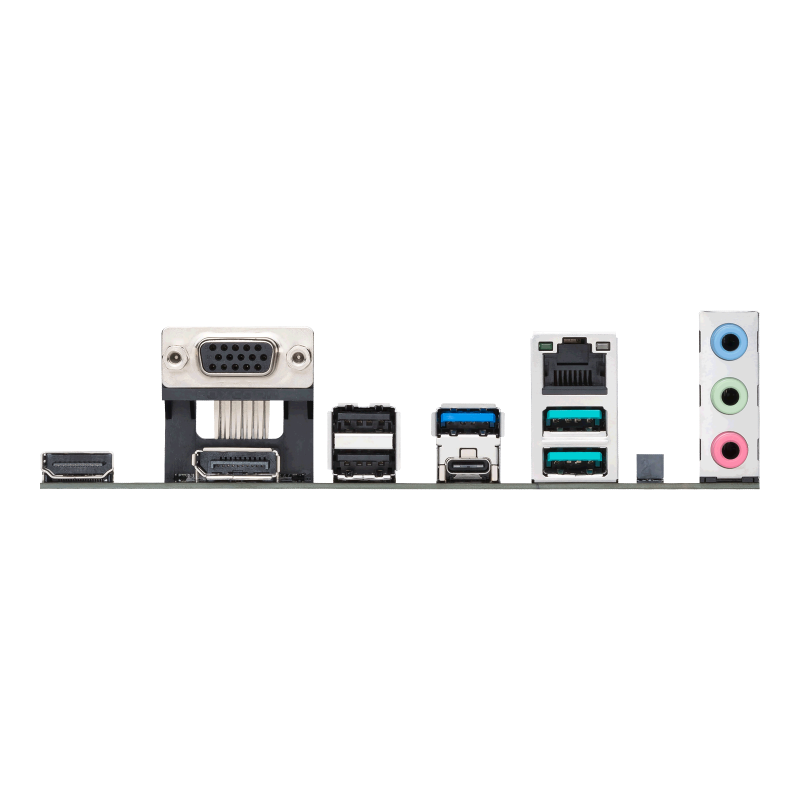

| Rear & Front I/O / USB | Rear: USB 3.2 Gen 2×2 Type‑C, multiple USB 3.2 Gen 2 & Gen 1 ports, USB 2.0; Front header: USB 3.2 Gen 1 Type‑C; includes Thunderbolt (USB4) header support |
| Networking & Audio | Realtek 2.5 Gb Ethernet; 7.1‑channel high‑def audio with dedicated components & shielding |
| Cooling & Thermal Design | VRM heatsinks; M.2 heatsinks; chipset (PCH) heatsink; hybrid fan headers including CPU, chassis & AIO pump; fan control via software tools |
| Special Features & Customization | Aura Sync RGB / addressable RGB headers; ASUS 5X Protection III (SafeSlot Core+, overvoltage protection, LANGuard, etc.); Q‑Design features like Q‑LED, Q‑Slot; OptiMem II memory trace optimization |
Why Choose this Product?
- Future‑proof build: PCIe 5.0 support plus three M.2 slots ensure you won’t be held back by storage or GPU bandwidth any time soon.
- Lightning fast memory: DDR5 at high overclocked speeds with ASUS OptiMem II delivers better responsiveness in gaming, video editing, and multitasking.
- Advanced connectivity: Front and rear USB‑C, USB4/Thunderbolt header, and 2.5 Gb Ethernet give you high‑speed transfer and networking options for modern workflows.
- Broad display options: DisplayPort, HDMI 2.1, and even VGA support let you connect to any monitor—even mixed legacy or modern displays without adapters.
- Robust thermal design: Heatsinks, hybrid fan headers, and system monitoring ensure cool, stable operation under gaming loads or long content creation sessions.
- Custom style & protection: RGB lighting that syncs with your build, reinforced slots and protection features to keep your investment safe.
- Versatile performance: Whether rendering, streaming, gaming or crunching spreadsheets, this board handles it all without compromise.
Upgrade Your PC Today
If you're ready to build a machine that excels in gaming, powering creative workloads, or boosting productivity—with maximum connectivity, speed, and flexibility—the ASUS Prime B760‑PLUS is the upgrade you need. Add to cart now and start assembling a next‑level system built for performance.
