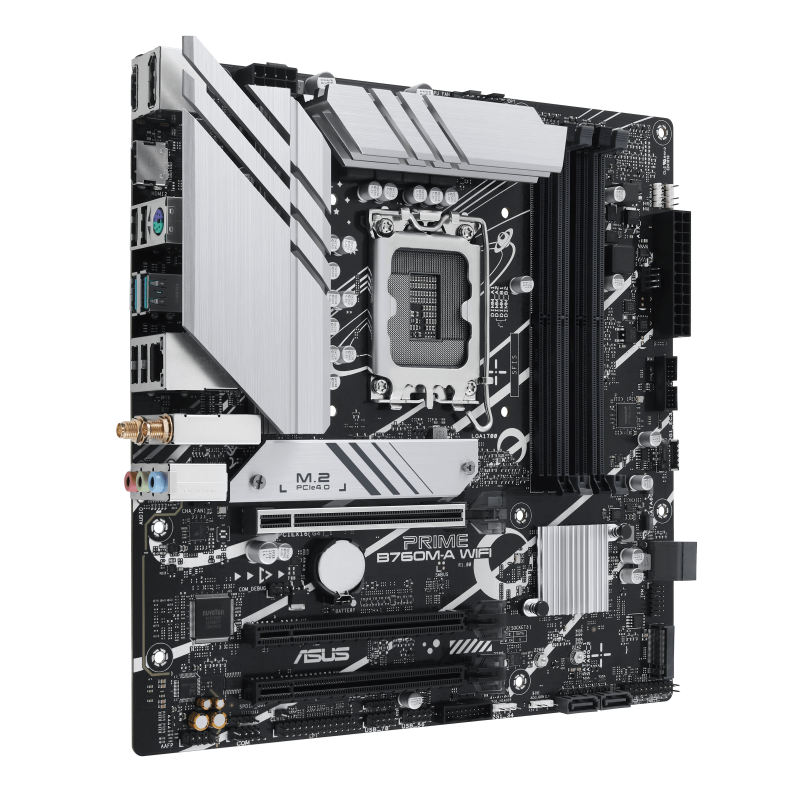

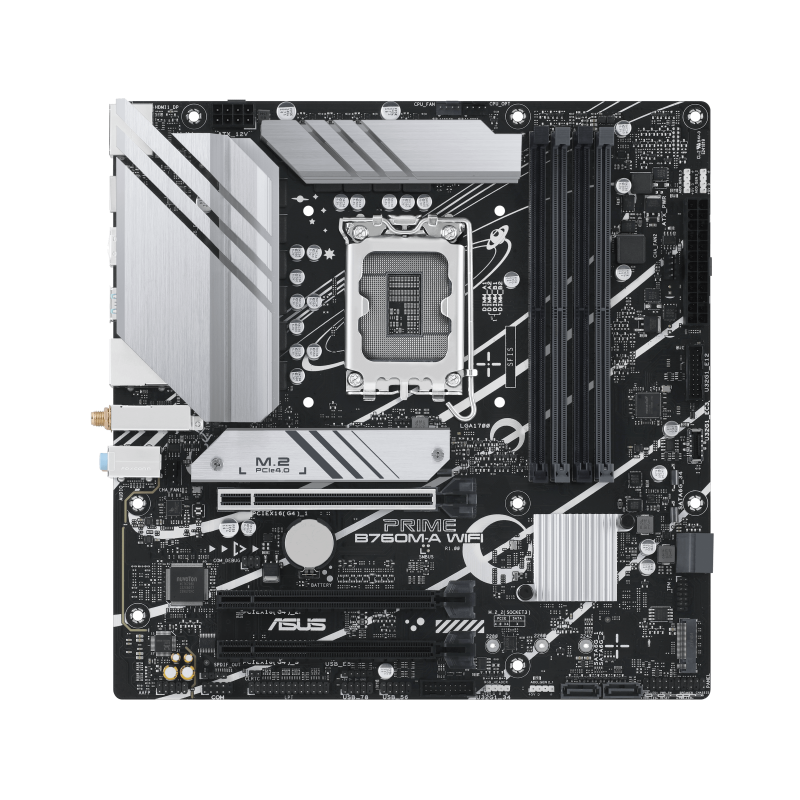

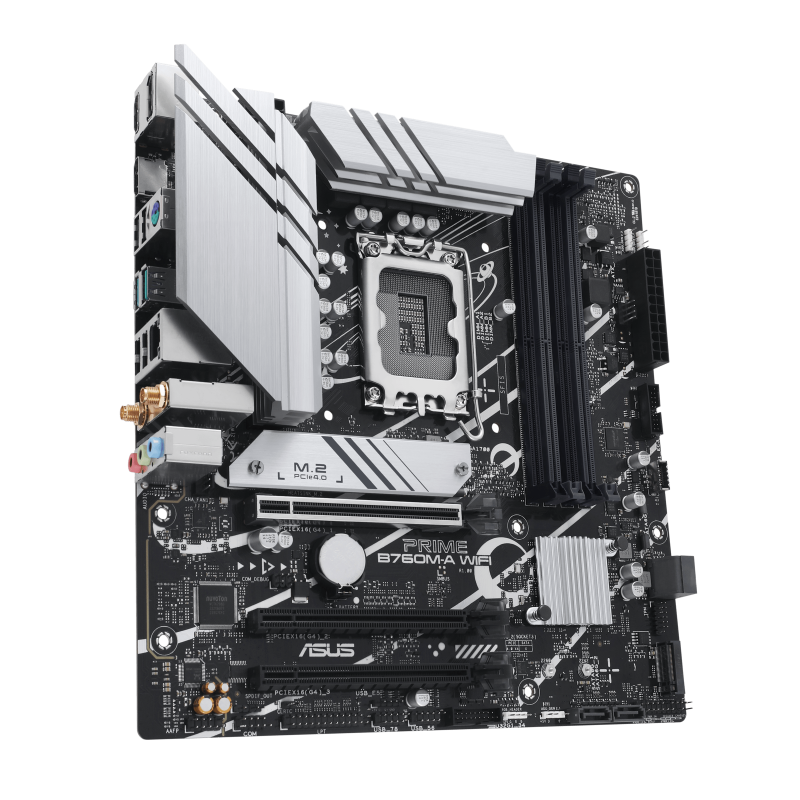

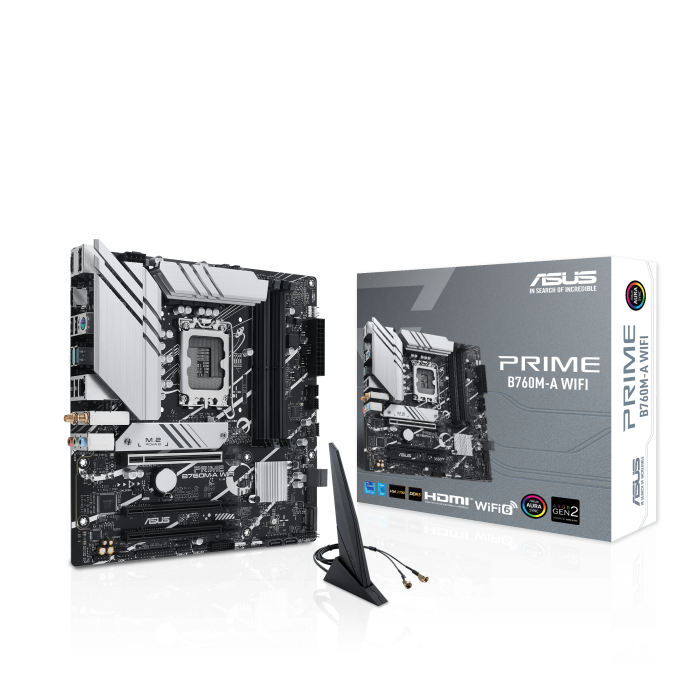

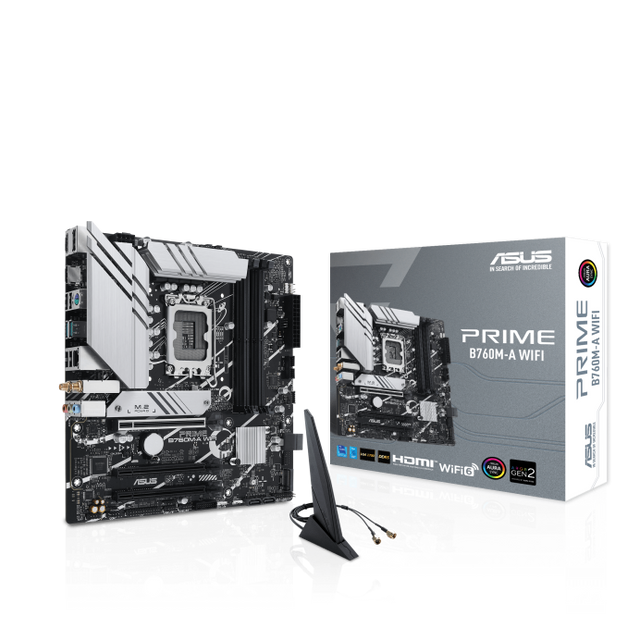

ASUS PRIME B760M-A WIFI Compact LGA 1700 mATX Motherboard for Modern Builds
ASUS PRIME B760M-A WIFI Compact LGA 1700 mATX Motherboard for Modern Builds is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Shipped within 3 business days
Return Policy
ASUS PRIME B760M-A WIFI Compact LGA 1700 mATX Motherboard for Moder...
| Manufacturer | Asus |
| Chipset | Intel B760 |
| Cpu socket | LGA 1700 |
| Form factor | mATX |
| Memory slots | 4 |
| Memory type | DDR5 |
Payment & Security
Cash on delivery - Instapay
The ASUS PRIME B760M-A WIFI is a versatile micro-ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors. It combines high-speed DDR5 memory, PCIe 4.0 expansion, and integrated Wi-Fi 6 in a compact 24.4 x 24.4 cm form factor ideal for gaming rigs and productive workstations.
key features
- DDR5 Memory Support - Enables faster data transfer and future-proof performance up to 192 GB with overclocking to 7200+ MHz
- PCIe 4.0 x16 Slot - Delivers maximum bandwidth for high-end GPUs and NVMe SSDs without bottlenecks
- Dual M.2 PCIe 4.0 Slots - Supports ultra-fast storage for quick game loads and large file transfers
- Wi-Fi 6 & 2.5Gb Ethernet - Provides reliable wired and wireless networking for lag-free online gaming
key specifications
| Feature | Specification |
|---|---|
| CPU Socket | LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | mATX (24.4 x 24.4 cm) |
| Memory | 4 x DDR5 DIMM, up to 192 GB, OC 7200+ MHz |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x16 (x1) |
| Storage | 2 x M.2 2280 (PCIe 4.0 x4), 4 x SATA 6 Gbps |
| Networking | Realtek 2.5 Gb Ethernet, Wi-Fi 6 (2x2), Bluetooth 5.2 |
| Rear USB | 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 |
| Front USB Headers | 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Display Outputs | 1 x DisplayPort, 2 x HDMI 2.1 (4K@60Hz) |
| Audio | Realtek 7.1 HD Audio |
* Specifications may vary by region and model variant.
performance excellence
Powered by the Intel B760 chipset, this motherboard maximizes 14th/13th/12th Gen CPU performance with robust VRM cooling and OptiMem II for stable overclocking. Dual-channel DDR5 and PCIe 4.0 ensure smooth multitasking, 4K gaming, and rapid data access in demanding applications.
user experience & comfort
Q-DIMM and Q-LED features simplify RAM installation and system diagnostics. Fan Xpert 2+ software offers intuitive control over hybrid fan headers for quiet, efficient cooling during extended use.
design & build quality
Durable 5X Protection III safeguards against electrical damage, while Aura Sync RGB headers enable customizable lighting. The compact mATX layout fits smaller cases without sacrificing expandability or heatsink coverage for VRM, M.2, and PCH.
connectivity & compatibility

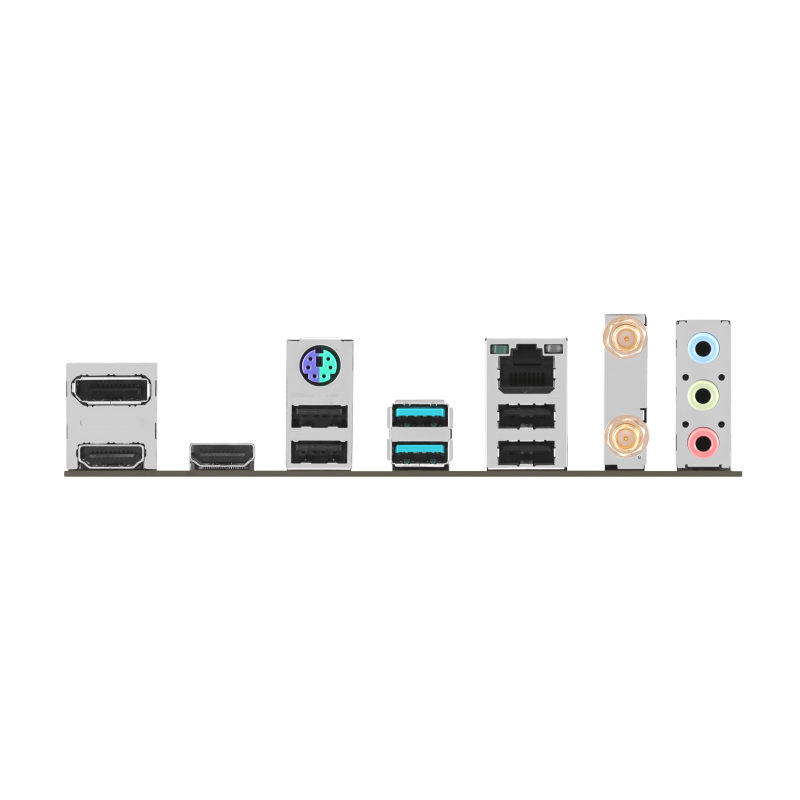

- 2 x USB 3.2 Gen 2 Type-A (rear, 10 Gbps)
- 1 x USB 3.2 Gen 1 Type-C header (front, 5 Gbps)
- Realtek 2.5 Gb Ethernet + Wi-Fi 6 (802.11ax) + Bluetooth 5.2
- 1 x DisplayPort + 2 x HDMI 2.1 supporting 4K@60Hz
perfect for
- Gaming PCs with Intel 14th/13th/12th Gen CPUs requiring fast networking and storage
- Compact productivity workstations for content creation and multitasking
- SFF builds needing modern I/O including front USB-C and dual 4K displays
why choose this product
This motherboard delivers enterprise-grade durability and connectivity in a budget-friendly package. ASUS engineering ensures long-term stability, making it a smart upgrade for users seeking performance without complexity.
frequently asked questions
Q: What processors does the ASUS PRIME B760M-A WIFI support?
A: It supports Intel 14th, 13th, and 12th Gen Core processors via LGA 1700 socket. BIOS update may be required for 14th Gen.
Q: Does it support DDR4 memory?
A: No, it exclusively supports DDR5 memory for optimal performance and future compatibility.
Q: Is Wi-Fi included?
A: Yes, integrated Wi-Fi 6 (2x2) and Bluetooth 5.2 are built-in – no additional card needed.
