MSI A520M-A PRO AMD A520 AM4 Micro-ATX DDR4 PCIe 3.0 SATA 6Gb/s M.2 USB 3.2 Gen 1 DVI/HDMI
MSI A520M-A PRO AMD A520 AM4 Micro-ATX DDR4 PCIe 3.0 SATA 6Gb/s M.2 USB 3.2 Gen 1 DVI/HDMI تم طلبه مسبقًا وسيتم شحنه بمجرد عودته إلى المخزون.
MSI A520M-A PRO AMD A520 AM4 Micro-ATX DDR4 PCIe 3.0 SATA 6Gb/s M.2...
| Manufacturer | Msi |
| Chipset | AMD A520 |
| Cpu socket | AM4 |
| Form factor | mATX |
| Memory slots | 2 |
| Memory type | DDR4 |
الدفع والأمان
الدفع عند الاستلام - Instapay
العنوان الفرعي

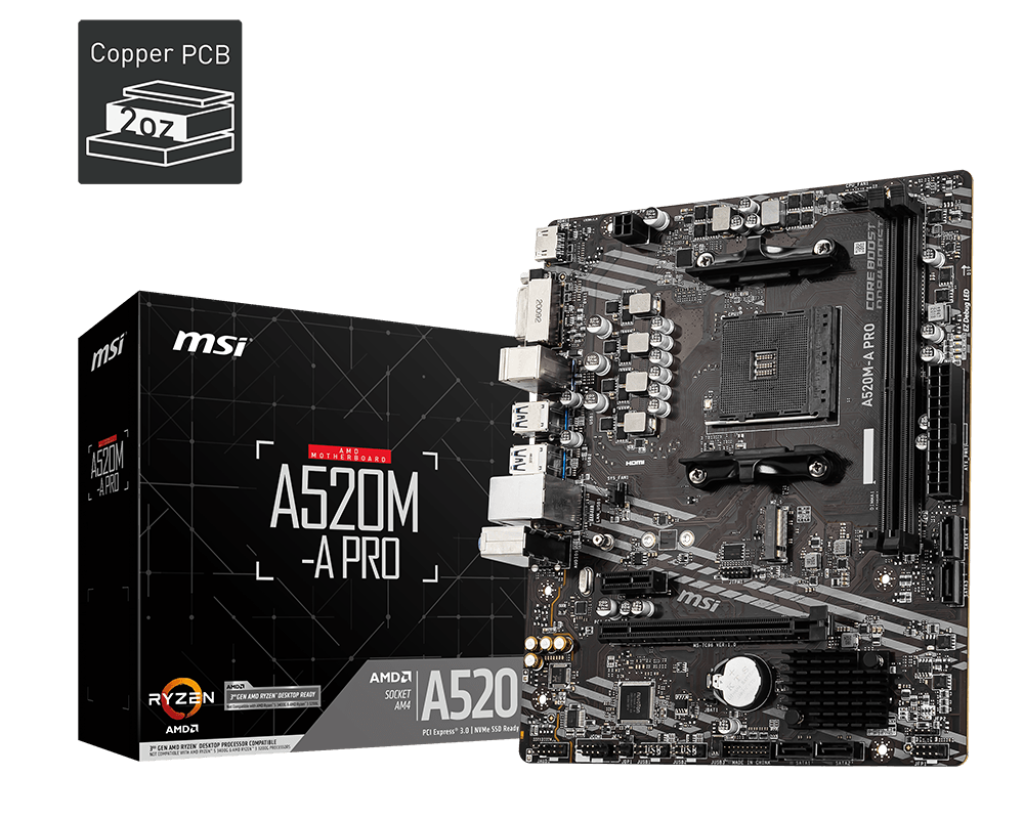

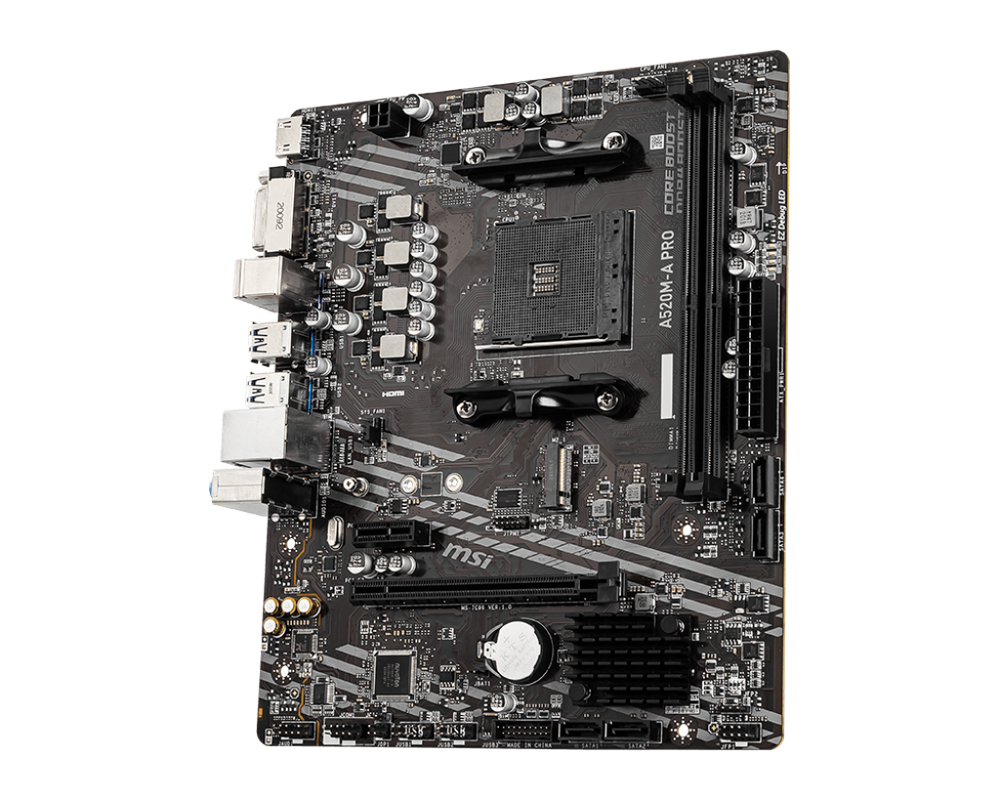

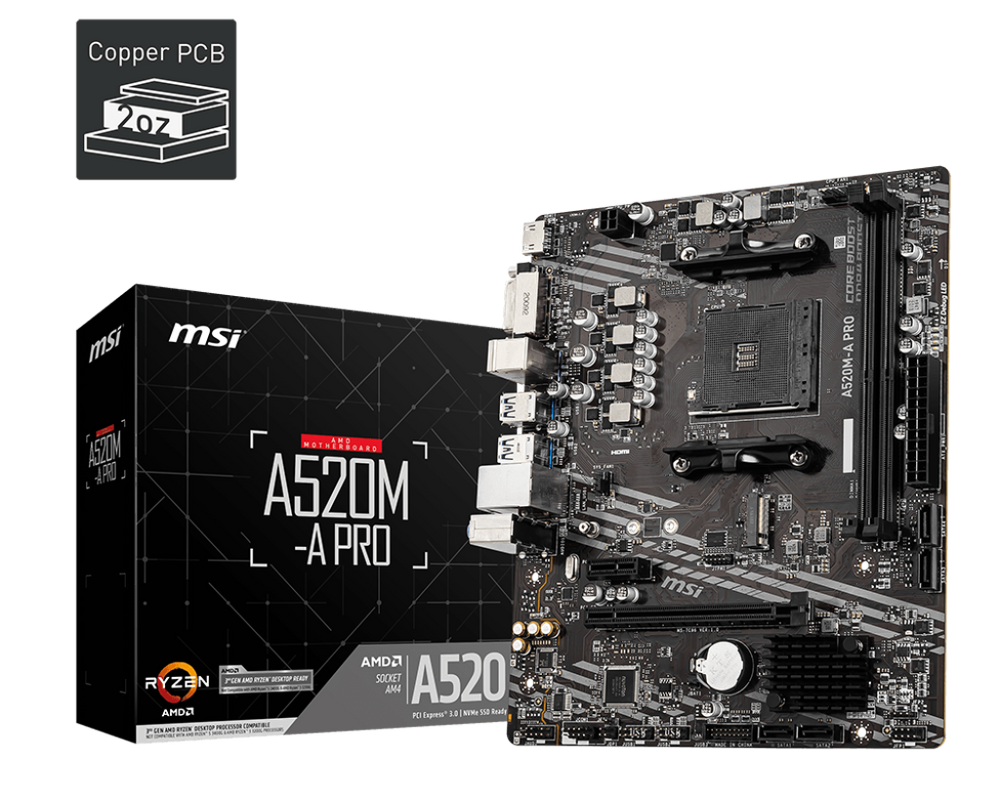

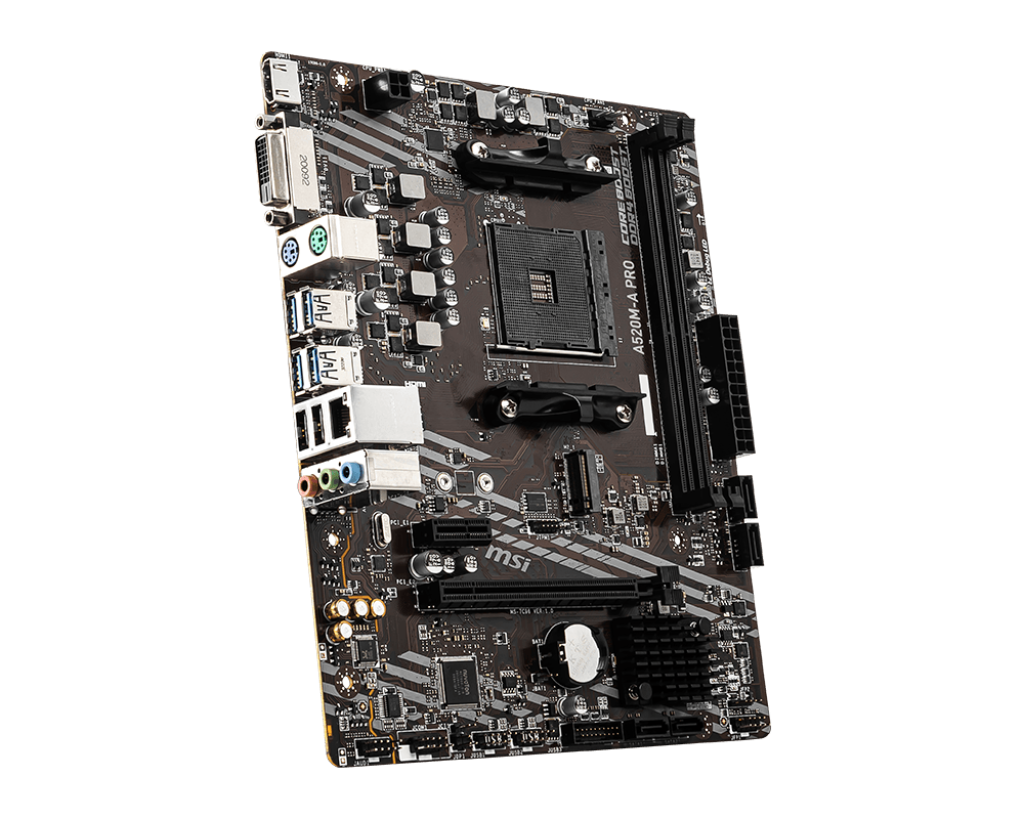

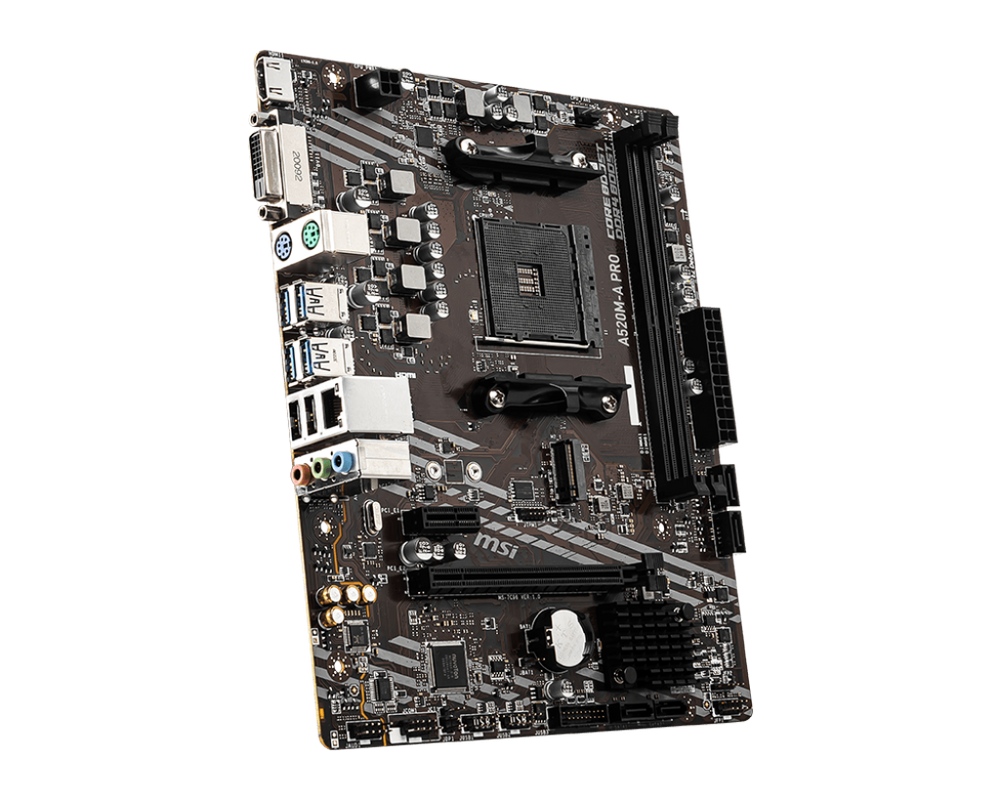

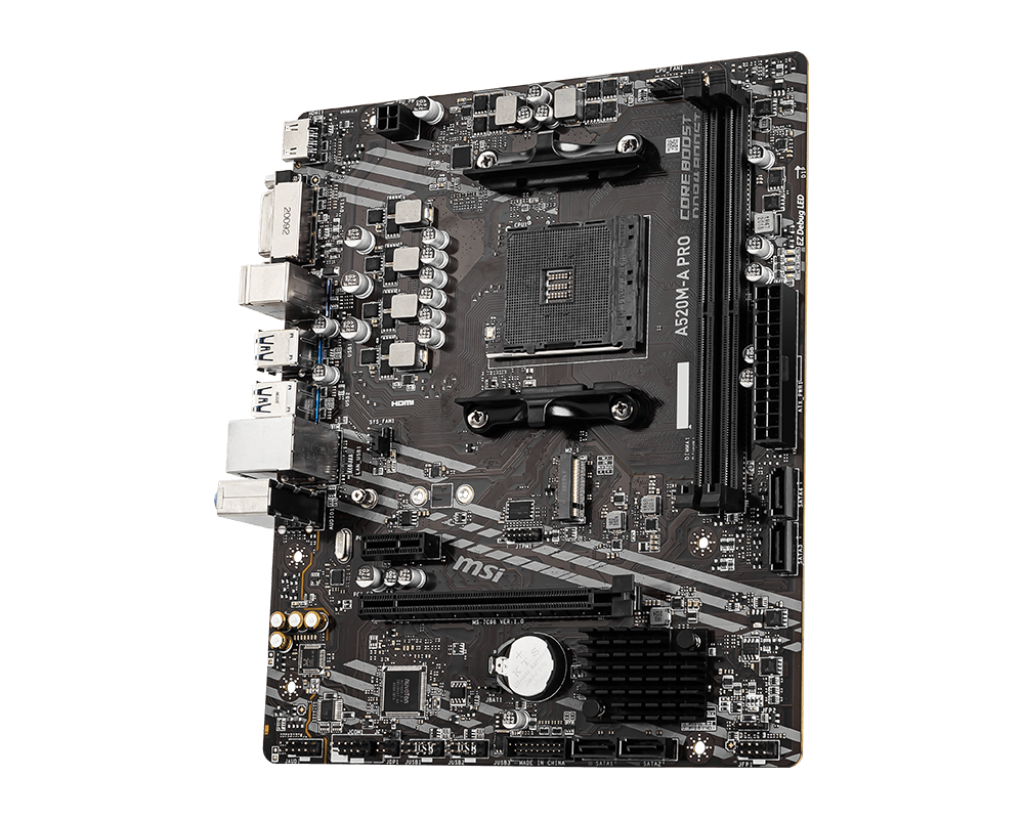

MSI A520M‑A PRO DDR4 AM4 Micro‑ATX Motherboard
Step into efficient, reliable computing with the MSI A520M‑A PRO — a compact micro‑ATX board offering AM4 socket support, DDR4 memory compatibility, PCIe 3.0 expansion, integrated display outputs, M.2 & SATA storage, USB 3.2 Gen 1 connectivity and Gigabit LAN. Engineered for budget‑conscious gamers, casual creators, office workflows and first‑time PC builders who need basic but stable performance with upgrade potential.
Key Specifications
| Feature | Specification |
|---|---|
| CPU & Chipset | AMD AM4 socket; supports Ryzen 3000, 4000 G‑Series & 5000 series CPUs on A520 chipset |
| Memory | 2× DDR4 DIMM slots, up to 64 GB; supports JEDEC up to DDR4‑3200 MHz, A‑XMP OC up to ~DDR4‑4600 MHz (1DPC 4600 MHz max) |

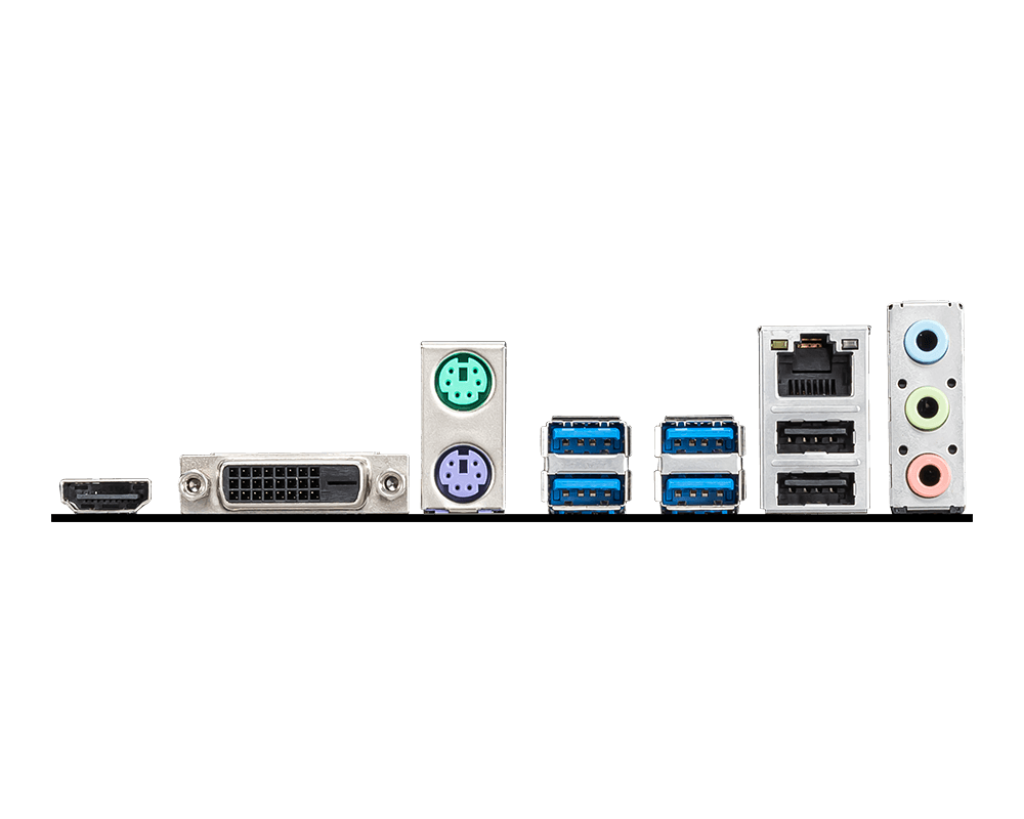

| Graphics Output | 1× HDMI port (up to 4K @ 60 Hz, HDCP 1.4/2.3) & 1× DVI‑D port (up to 1920×1200 @ 60 Hz), shared up to 16 GB memory |
| Expansion Slots | 1× PCIe 3.0 x16 slot (full x16 with Ryzen non‑G/5000/4000G; reduced lanes with Athlon or 3000G); 1× PCIe 3.0 x1 slot |
| Storage | 1× M.2 Key‑M slot (PCIe 3.0×4 or sata per CPU); 4× SATA 6 Gb/s ports (RAID 0/1/10 support) |
| USB Connectivity | Rear: 4× USB 3.2 Gen 1 Type‑A (5 Gbps), 2× USB 2.0; Internal: 2× USB 3.2 Gen 1 headers (adds 2 ports), 4× USB 2.0 headers |
| Network | Gigabit LAN powered by Realtek RTL8111H controller |
| Audio | Realtek ALC892 / ALC897 7.1‑channel high‑definition audio |
| Form Factor & Layout | Micro‑ATX (≈23.6 × 20 cm), eight mounting holes, compact layout fits small cases |
Why Choose This Product?
- **Affordable Ryzen‑AM4 support:** Ideal for Ryzen 3000/4000G/5000 CPUs — great for budget gaming or productivity builds.
- **High‑speed memory support:** A‑XMP overclocking enables DDR4 speeds up to ~4600 MHz for smoother multitasking and editing.
- **Essential display outputs built‑in:** HDMI and DVI‑D support integrated graphics for APU users without needing a discrete GPU.
- **Modern storage flexibility:** M.2 NVMe slot and SATA RAID support let you customize fast or budget storage configurations.
- **Solid connectivity:** Four USB 3.2 Gen 1 ports, USB 2.0 support and reliable Gigabit LAN for wired networking or peripherals.
- **Compact but functional layout:** Micro‑ATX form factor fits small cases without compromising expansion or internal headers.
Ready to Upgrade Your PC?
If you're building a sleek budget gaming rig, a home office workstation, or launching your first custom desktop — the MSI A520M‑A PRO offers reliable Ryzen support, rapid memory performance, and essential connectivity in a compact form. Take the next step and upgrade your motherboard now to power faster, smoother computing today.
